Specifications

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz	66kA
Rated Short Circuit Breaking Capacity, (Ics) 690V AC	66kA
Rated Short Circuit Breaking Capacity, (Icu) 690V AC	66kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz	66kA
Product Type	Withdrawable
Brand	ABB
Series	SACE Emax 2
Application	Power Distribution/ Power Control
AC Power Loss Per Pole at In	248 W
Air Circuit Breaker (Withdrawable)	Withdrawable
Electrical Endurance	7000
Integrated Communication Function	Yes
Long Time Overload Protection Adjustment Range	0.4 x In-1 x In
Max. Rated Operation AC Voltage (Ue)	690VAC
No. of Poles (Total)	3
Rated Current (In)	3200A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Insulation Voltage (Ui)	1000VAC
Short-time Protection Adjustment Range	0.6 x In-10 x In
Short-time Withstand Current (Icw), 1 sec	66kA
Short-time Withstand Current (Icw), 3 sec	50kA
Type of Protection Trip Unit	Ekip Touch LSIG
Frame Size Rating	E4.2N
Power Loss	743W
Rated Frequency	50Hz60Hz
Trip Curve	LSIG
Housing Material	polyester thermoset
Max. Vibration Acceleration	0.7g
Mechanical Endurance	20000
Depth	383 mm
Height	425 mm
Weight	60kg
Width	425 mm
Rated Surrounding Temperature Without Derating	55°C
Pollution Degree	Level 3
Operating Temperature	25°C to 70°C
IP Rating	IP20
Max. Altitude Before Derating	2000m
Communication Protocols	IEC 61850Modbus TCPModbus RS485Profibus ProfinetDeviceNet™EtherNet/IP™"
Standards and Approvals	IEC 609472 and EN 60947

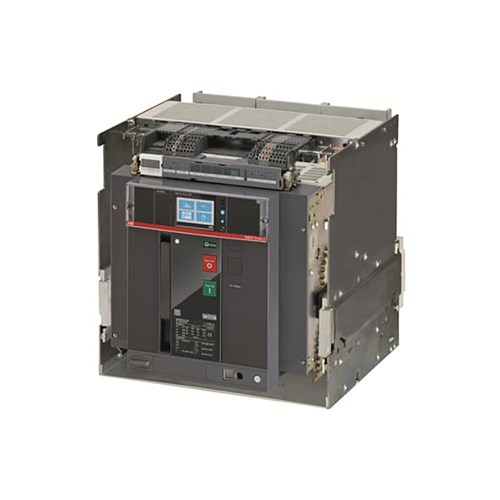

ABB MOVING PART W/D FOR ACB E4.2N 3P 66kA 3200A EKIP/TOUCH-LSIG TRP MOC PLC ABB 1SDX165546R1 1SDA072496R1
