Specifications

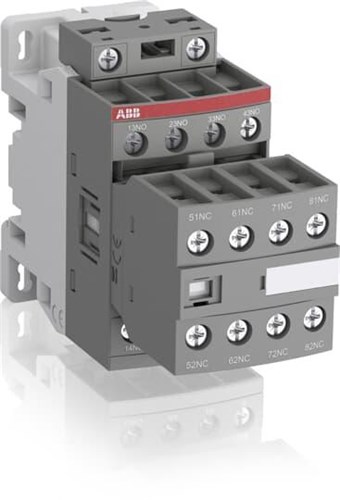

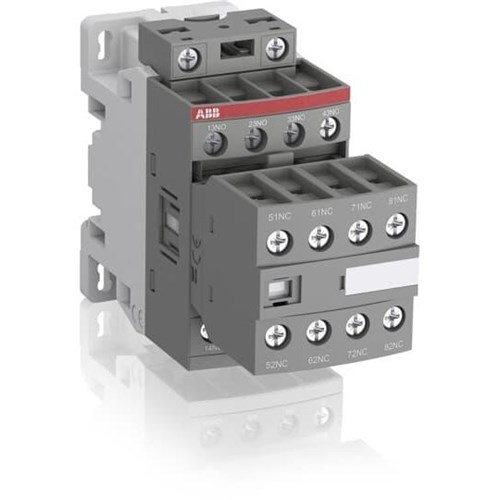

Product Type	Contactor Relays
Brand	ABB
Connection Type	Screw Connection for Auxiliary Circuit
Actuating Voltage	AC/DC
No. of N/C Contacts	4
No. of N/O Contacts	4
No. of Poles (NO/NC)	4NO/4NC
Operating Voltage	24-60 VAC, 20-60 VDC
Rated Control Supply Voltage (Us)	50 Hz 100 ... 250 V 60 Hz 100 ... 250 V DC Operation 100 ... 250 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Insulation Voltage (Ui)	690 V, 600 V
Rated Operational Current AC-15 (Ie)	(690 V) 2 A
Timing Range	13 to 98 ms, 11 to 95 ms, 38 to 90 ms, 40 to 95 ms
Contact Configuration	4NO
Rated Current	2 A, 2 A, 6 A, 4 A, 3 A
Rated Frequency	50 / 60 Hz
Rated Voltage	100-250 V
Rated Withstand Current	140 A, 100 A
Terminal Type	M4 Screw
Rated Thermal Current (Ith)	16 A
Mounting Type	35 x 15 mm Mounting Rail
Wire Stripping Length	10 mm Auxiliary Circuit, 10 mm Control Circuit
Depth	110.5 mm
Height	86 mm
Length	110.5 mm
Weight	0.32 kg
Width	45 mm
IP Rating	IP20
Ambient Temperature	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
