Specifications

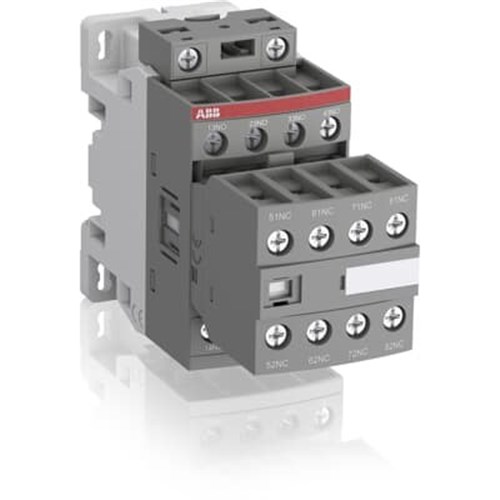

Product Type	Contactor Relays
Brand	ABB
No. of N/C Contacts	3
No. of N/O Contacts	5
No. of Poles (NO/NC)	5NO/3NC
Rated Control Supply Voltage (Us)	50 Hz 100 ... 250 V 60 Hz 100 ... 250 V DC Operation 100 ... 250 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Insulation Voltage (Ui)	600/690 V
Rated Operational Current AC-15 (Ie)	(690 V) 2 A
Contact Configuration	3NC+5NO
Rated Current	3 A
Rated Frequency	50 / 60 Hz
Rated Voltage	100-250 V
Terminal Type	Screw
Connecting Capacity	Flexible with Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 2 x 0.75-1.5 sq-mm, Rigid Solid 1/2 x 1-2.5 sq-mm, Rigid Stranded 1/2 x 1-2.5 sq-mm
Tightening Torque	1.2 N-m
Wire Stripping Length	10 mm
Depth	110.5 mm
Height	86 mm
Weight	0.32 kg
Width	45 mm
Pollution Degree	3
IP Rating	IP20
Ambient Temperature	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
