Specifications

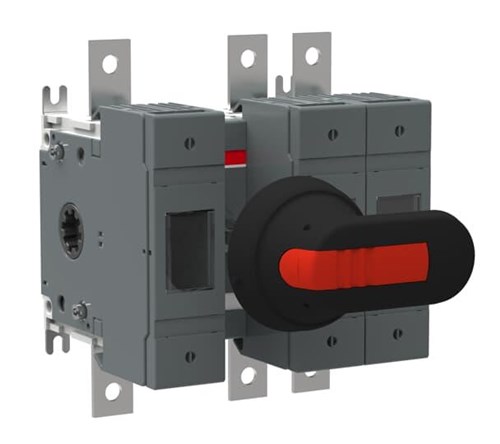

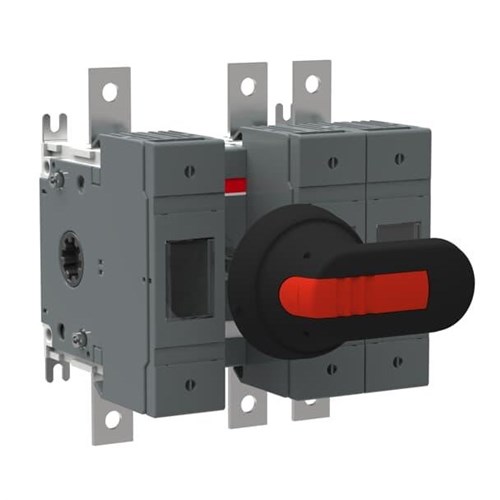

Product Type	Switch fuse
Brand	ABB
Series	OS and OSM
Application	Manufacturing, utilities, infrastructure
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)	125 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	690 V AC
Rated Operation Power at AC-23, 400 V	55000 W
Rated Operational Current AC21-A (Ie)	125 A
Rated Operational Current AC22-A (Ie)	125 A
Rated Operational Current AC23-A (Ie)	125 A
Rated Short Time Withstand Current (Icw)	5000 A
Short-time Withstand Current	5 kA
Electrical Connection	Bolt
Power Loss	12 W
Rated Current	125 A
Rated Power	110 kW
Rated Short Circuit Current	80 kA
Rated Voltage	1000 VAC
Terminal Type	Lug
Fuse Size	A2-A4
No. of Poles	3
Switches Operating Mechanism	12-P
Rated Thermal Current (Ith)	125 A
Colour	Black
Handle Type	Pistol
Material	Plastic
Mounting Type	Busbar
Tightening Torque	15-22 N-m
Depth	115 mm
Height	140 mm
Weight	1600 g
Width	147 mm
Pollution Degree	3
IP Rating	IP20
Standards and Approvals	IEC 60947-3, CCC, CE, DNV GL
Included Components	Pistol handle and Shaft
