Specifications

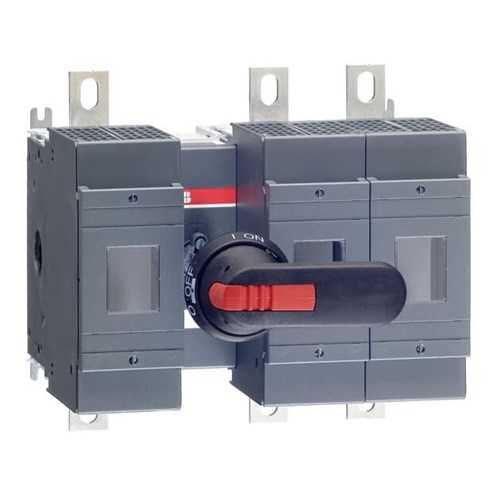

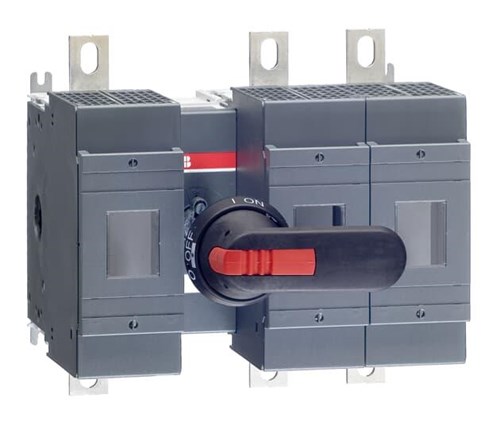

Product Type	Fuse Switch Disconnector
Brand	ABB
Air Thermal Current	400 A
Control Element Position	Front Side
Control Element Type	Long Turning Handle
Degree of Pollution	IP3
Degree of Protection	IP65
Depth	193 mm
Electrical Connection	Bolt
Handle Colour	Black
Handle Material	Plastic
Handle Type	Pistol
Height	230 mm
Includes	Handle, Shaft
Mode of Operation	Front
Mounting Type	Busbar
Number of Poles	3
Operating Mechanism	12-P
Power Loss	45 W
Rated Current	400 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Power	400 kW
Rated Short Circuit Current	80 kA
Rated Short Time Withstand Current	14 kA
Rated Voltage	1000 VAC
Standards and Approvals	IEC 60947-3, RoHS, REACH, CE, WEEE
Suitable For Use With	NH0 Base
Terminal Type	Lug
Terminal Width	25 mm
Tightening Torque	30-44 N-m
Width	255 mm
