Specifications

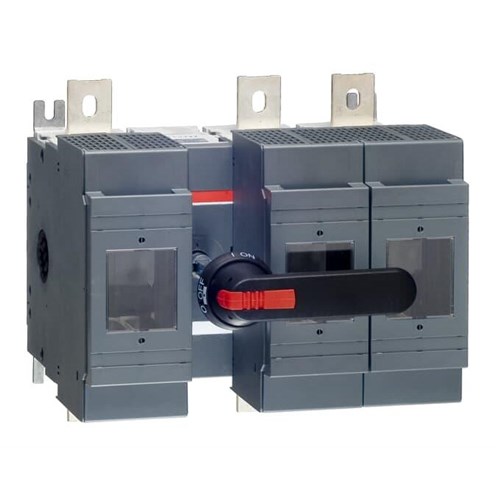

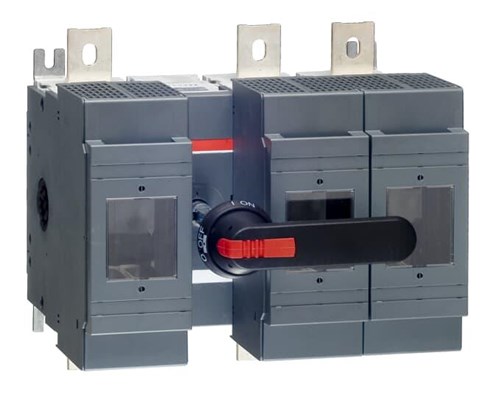

Product Type	Fuse Switch Disconnector
Brand	ABB
Air Thermal Current	630 A
Control Element Position	Front Side
Control Element Type	Long Turning Handle
Degree of Pollution	IP3
Degree of Protection	IP65
Depth	233 mm
Electrical Connection	Bolt
Handle Colour	Black
Handle Material	Plastic
Handle Type	Pistol
Height	306 mm
Includes	Handle, Shaft
Mode of Operation	Front
Mounting Type	Busbar
Number of Poles	3
Operating Mechanism	12-P
Power Loss	60 W
Rated Current	630 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Power	630 kW
Rated Short Circuit Current	80 kA
Rated Short Time Withstand Current	18 kA
Rated Voltage	1000 VAC
Standards and Approvals	IEC 60947-3, RoHS, REACH, CE, WEEE
Suitable For Use With	NH3 Base
Terminal Type	Lug
Terminal Width	39 mm
Tightening Torque	50-75 N-m
Width	341 mm
