Specifications

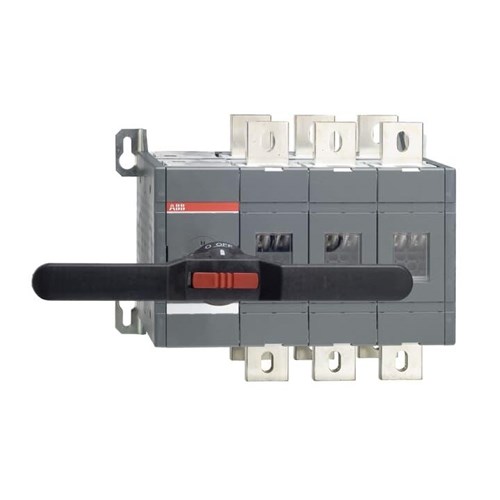

Product Type	OT1000E03CP CHANGE-OVER SWITCH
Brand	ABB
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)	1000 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V
Rated Operation Power at AC-23, 400 V	560000 W
Rated Operation Power at AC-31b (Ie)	1000 A
Rated Operational Current AC21-A (Ie)	1000 A
Rated Operational Current AC22-A (Ie)	1000 A
Rated Operational Current AC23-A (Ie)	1000 A
Rated Short Time Withstand Current (Icw)	50000 A
Short-time Withstand Current	50 kA
Suitable For	Distribution Board Installation
Power Loss	19 W
Rated Current	1000 A
Rated Power	560 kW
Rated Voltage	415 VAC
Transition Type	Open
Terminal Type	Bolt
No. of Poles	3
Colour	Black
Colour Control Element	Black
Handle Type	Pistol
Mounting Type	4-Hole Front Mount
Padlock Locking	Handle padlockable in the 0-position
Padlockable	Padlockable in O-position
Tightening Torque	75 N-m
With Lock	Yes
Depth	309 mm
Height	306 mm
Weight	48000 g
Width	400 mm
Pollution Degree	3
IP Rating	IP20
NEMA Rating	NEMA 1
Standards and Approvals	CE, DNV
