Specifications

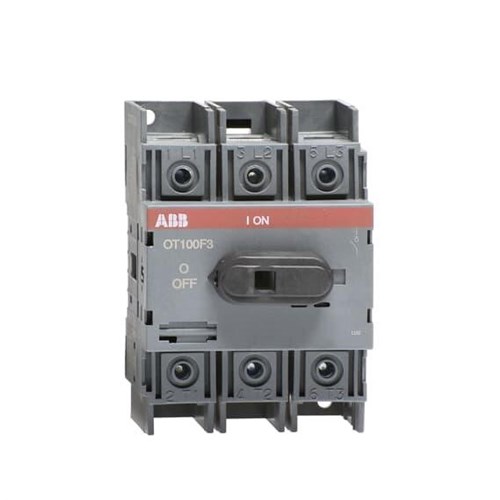

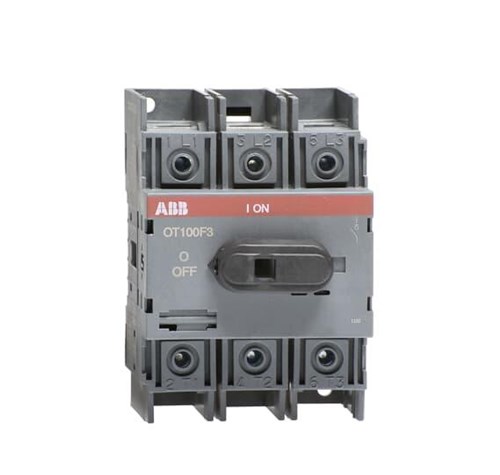

Product Type	Base Mount Switch Disconnector
Brand	ABB
Cable Cross Section	10-70 sq-mm
Colour	Black
Control Element Colour	Black
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	74 mm
Electrical Connection	Screw
Height	100 mm
Mode of Operation	Front
Mounting Type	Base
NEMA Rating	NEMA 1
Number of Poles	3
Operating Mechanism	Top of the Switch
Power Loss	4 W
Rated Current	100 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	750 V
Rated Power	37 kW
Rated Short Time Withstand Current	2.5 kA
Rated Voltage	750 VAC
Standards and Approvals	IEC 60947-3, UL 98, CSA C22.2NO.4, RoHS, REACH
Suitable For Use With	Distribution Board Installation
Terminal Type	Screw Clamp
Width	70 mm
