Specifications

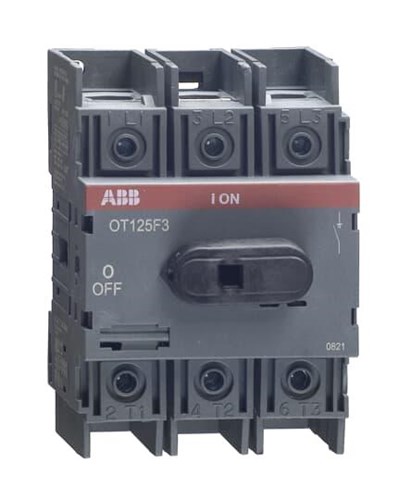

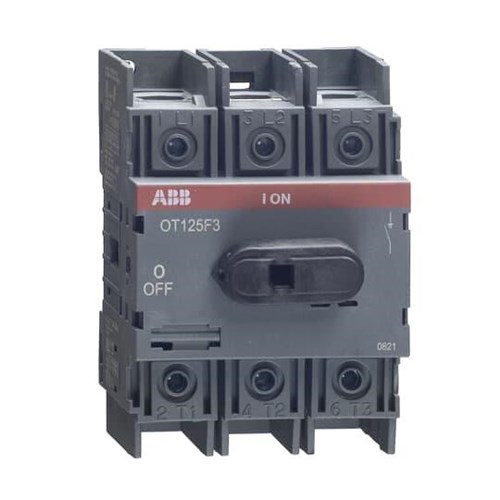

Product Type	Base Mount Switch Disconnector
Brand	ABB
Cable Cross Section	10-70 sq-mm
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	74 mm
Electrical Connection	Screw
Height	100 mm
Mode of Operation	Front
Mounting Type	Base
NEMA Rating	NEMA 1
Number of Poles	3
Operating Mechanism	Top of the Switch
Power Loss	6.3 W
Rated Current	125 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	750 V
Rated Power	45 kW
Rated Short Time Withstand Current	2.5 kA
Rated Voltage	750 VAC
Standards and Approvals	IEC 60947-3
Suitable For Use With	Distribution Board Installation
Terminal Type	Screw Clamp
Width	70 mm
