Specifications

Product Type	Changeover Switch Kit
Brand	ABB
Series	OT
Pole Type	Switched-Simultaneous Function
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)	125 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	750 V
Rated Operating Voltage	Main Circuit 750 V
Rated Operation Power at AC-23, 400 V	45 kW
Rated Operational Current AC21-A (Ie)	125 A
Rated Operational Current AC22-A (Ie)	125 A
Rated Operational Current AC23-A (Ie)	90 A
Rated Short Time Withstand Current (Icw)	for 1 s 2.5 kA rms
Power Loss	at Rated Operating Conditions per Pole 6.3 W
Rated Current	125 A
Rated Voltage	750 VAC/VDC
Transition Type	Open
Mechanical Life	6000
No. of Poles	4P
Colour	Black

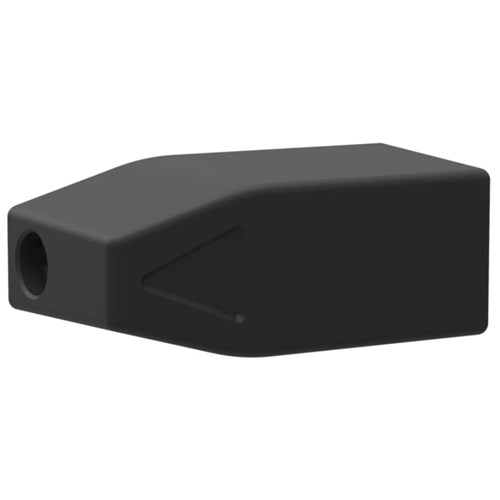

Handle Type	Knob
Mounting Type	DIN Rail
Depth	86 mm (Only the switch)
Height	106 mm (Only the switch)
Weight	1.4 kg (Only the switch)
Width	193 mm (Only the switch)
Pollution Degree	3
Operating Temperature	-25 to +40 °C
IP Rating	Front IP20
Standards and Approvals	UL 98 / IEC60947-3

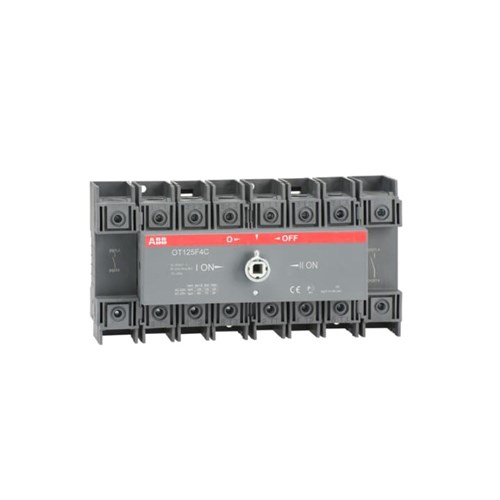

ABB CHANGEOVER SWITCH KIT 125A 4P/4P DIN PROFILE C/W NON PAD LOCK HANDLE UP TO 70MM2 CABLE
