Specifications

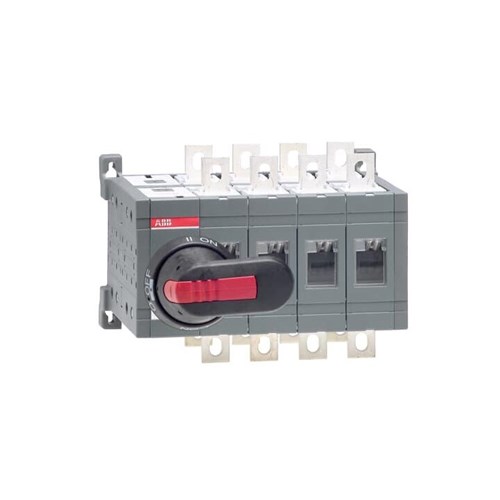

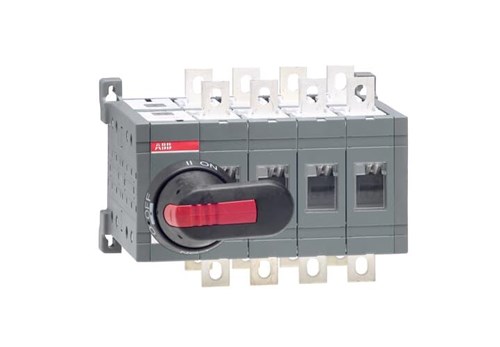

Product Type	Changeover Switch
Brand	ABB
Air Thermal Current	160 A
Control Element Colour	Black
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	160 mm
Handle Type	Pistol
Height	150 mm
Includes	Handle, Shaft
Indicators	I-O-II
Interlockable	Yes
Line Terminals Position	Top In-Bottom Out, Bottom In-Top Out
Mode of Operation	Front
Mounting Type	4-Hole Front Mount
NEMA Rating	NEMA 1
Number of Poles	4
Number of Switches	1
Padlockable	Padlockable in O-Position
Power Loss	2.4 W
Rated Current	160 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Power	90 kW
Rated Short Time Withstand Current	8 kA
Rated Voltage	415 VAC
Standards and Approvals	RoHS, REACH, CE, WEEE
Suitable For Use With	Distribution Board Installation
Terminal Type	Bolt
Tightening Torque	22 N-m
Transition Type	Open
Weight	4.1 kg
Width	205 mm
