Specifications

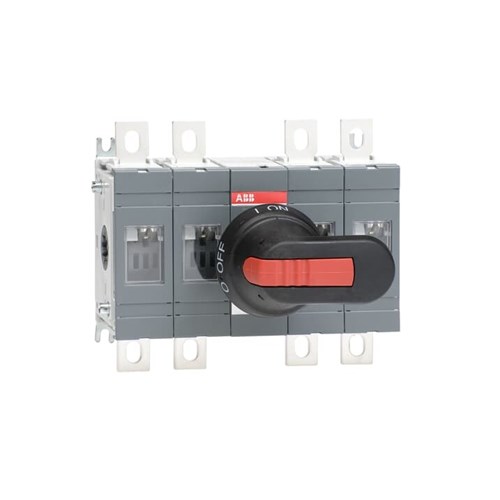

Product Type	OT160EV22P SWITCH-DISCONNECTOR
Brand	ABB
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V
Rated Operation Power at AC-23, 400 V	88000 W
Rated Operational Current AC21-A (Ie)	200 A
Rated Operational Current AC23-A (Ie)	160 A
Rated Short Time Withstand Current (Icw)	8000 A
Short-time Withstand Current	8 kA
Power Loss	3.2 W
Rated Current	200 A
Rated Power	48 kW, 88 kW, 112 kW, 144 kW
Rated Short Circuit Current	80 kA, 100 kA
Rated Voltage	1000 VAC
Special Functions	No
Terminal Type	Lug
Fuse Protected Short Circuit Making (kArms)	30 kA
Mechanical Durability	20000
Mechanical Life	20000 cycles
No. of Poles	4
Switches Operating Mechanism	Front
Colour	Black
Handle Type	Handle and shaft included
Locking Mechanism	Yes
Mounting Type	Base
Depth	82.5 mm
Height	150 mm
Weight	1700 g
Width	185.5 mm
Pollution Degree	3
IP Rating	IP00
Standards and Approvals	IEC 60947-3, IEC 60335-2-40, CE, DNV GL
