Specifications

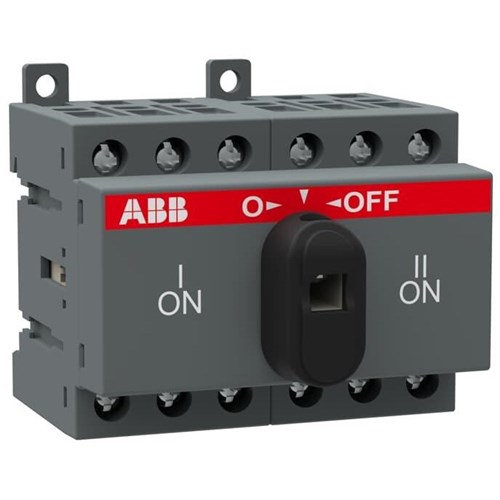

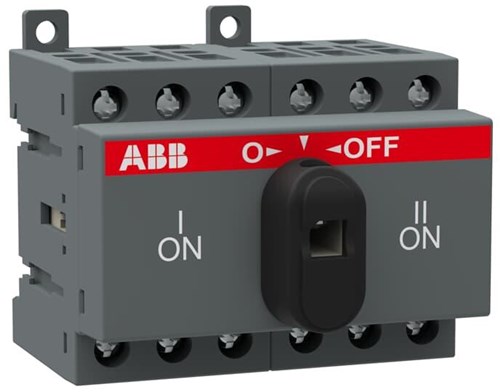

Product Type	Changeover Switch
Brand	ABB
Air Thermal Current	16 A
Cable Cross Section	0.75-10 sq-mm
Control Element Colour	Black
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	68 mm
Height	68 mm
Includes	Knob Handle
Indicators	I-O-II
Interlockable	Yes
Line Terminals Position	Top In-Bottom Out, Bottom In-Top Out
Mode of Operation	Front
Mounting Type	4-Hole Front Mount
NEMA Rating	NEMA 1
Number of Poles	3
Number of Switches	1
Power Loss	0.3 W
Rated Current	16 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	750 V
Rated Power	7.5 kW
Rated Short Time Withstand Current	0.5 kA
Rated Voltage	415 VAC
Standards and Approvals	UL 98, IEC60947-3, RoHS, REACH, CE, WEEE
Suitable For Use With	Distribution Board Installation
Terminal Type	Screw Clamp
Tightening Torque	0.8 N-m
Transition Type	Open
Weight	0.25 kg
Width	70 mm
