Specifications

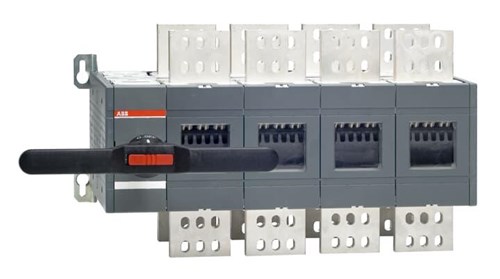

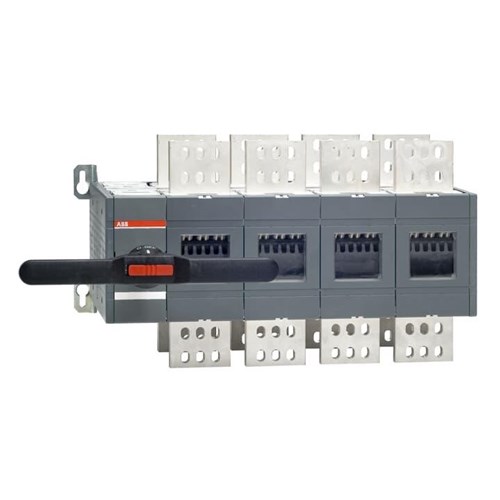

Product Type	Change-over switch
Brand	ABB
Series	OT2500E04CP
Application	Manual change-over switch
Location of Connection	Top In-Bottom Out, Bottom In-Top Out
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V
Rated Permanent Current at AC-21, 400 V	2500 A
Rated Short Time Withstand Current (Icw)	55000 A
Short-time Withstand Current	55 kA
Suitable For	Distribution Board Installation
Power Loss	85 W
Rated Current	2500 A
Rated Voltage	415 VAC
Transition Type	Open
Terminal Type	Screw Clamp
No. of Poles	4
Rated Thermal Current (Ith)	2500 A
Colour Control Element	Black
Handle Type	Pistol
Indicators	I-O-II
Mounting Type	4-Hole Front Mount
Padlock Locking	Handle padlockable in the 0-position
Padlockable	Padlockable in O-Position
Tightening Torque	75 N-m
With Lock	Yes
Depth	335 mm
Height	377 mm
Weight	69550 g
Width	664 mm
Pollution Degree	3
IP Rating	IP20
NEMA Rating	NEMA 1
Standards and Approvals	CE, DNV
