Specifications

Product Type	Base Mount Load Break Switch
Brand	ABB
Air Thermal Current	32 A
Cable Cross Section	0.75-10 sq-mm
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	52 mm

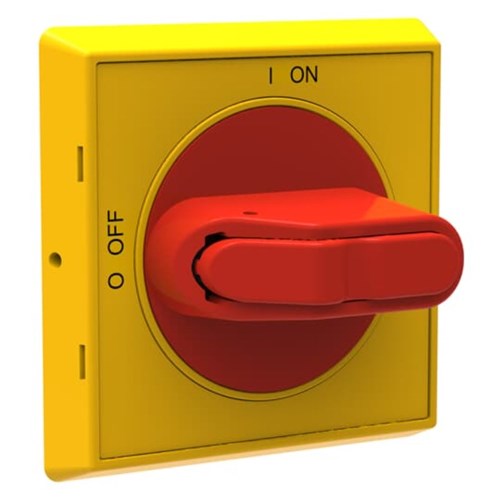

Handle Colour	Red, Yellow
Handle Size	65 mm H x 65 mm W x 59 mm D
Handle Type	Selector
Height	54 mm
Impulse Voltage	8 kV
Includes	Handle
Mode of Operation	Front
Mounting Type	Base
Number of Poles	3
Operating Mechanism	Top of the Switch
Operation Position	Front
Power Loss	0.6 W
Rated Current	25 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	750 V
Rated Power	9 kW
Rated Short Time Withstand Current	0.5 kA
Rated Voltage	750 V

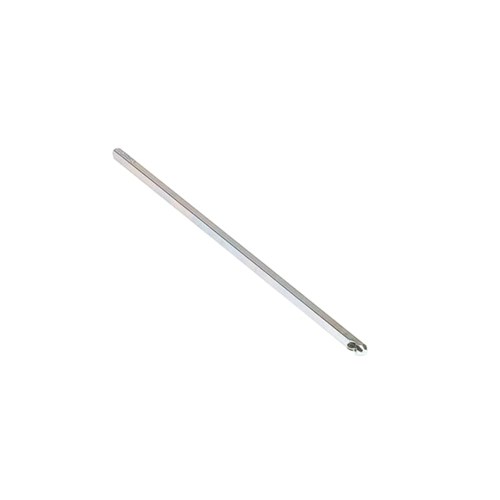

Shaft Size	6 mm H x 6 mm W x 180 mm D
Size	43 mm W x 54 mm H x 52 mm D
Standards and Approvals	IEC 60947-3, UL 508, CSA C22.2 No. 14
Terminal Type	Screw Clamp
Width	43 mm

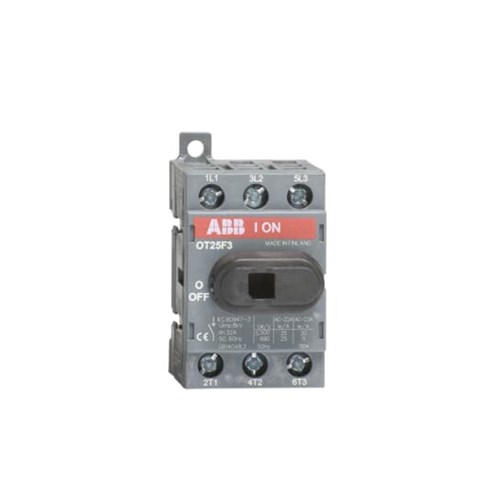

ABB OT25B22R3-K Base Mount Switch 25A 3-P Base Mount 9 kW IP20 Front 54mm H x 43mm W x 52mm D 22mm Fixing
