Specifications

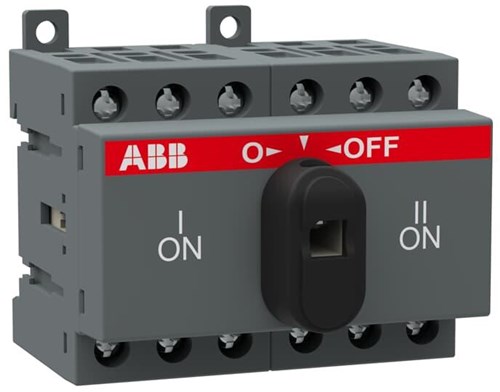

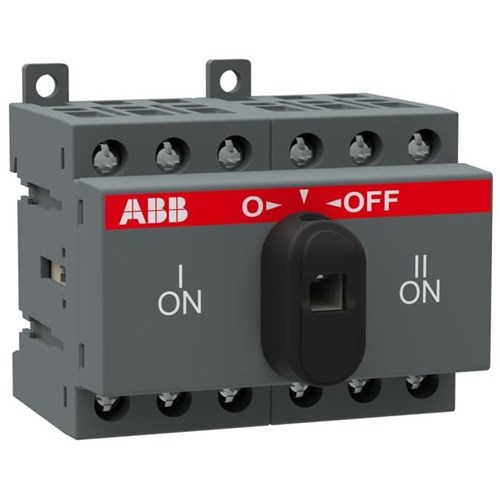

Product Type	Changeover Switch
Brand	ABB
Air Thermal Current	25 A
Cable Cross Section	0.75-10 sq-mm
Control Element Colour	Black
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	68 mm
Height	68 mm
Includes	Knob Handle
Indicators	I-O-II
Interlockable	Yes
Line Terminals Position	Top In-Bottom Out, Bottom In-Top Out
Mode of Operation	Front
Mounting Type	4-Hole Front Mount
NEMA Rating	NEMA 1
Number of Poles	3
Number of Switches	1
Power Loss	0.6 W
Rated Current	25 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	750 V
Rated Power	9 kW
Rated Short Time Withstand Current	0.5 kA
Rated Voltage	415 VAC
Standards and Approvals	RoHS, REACH, CE, WEEE
Suitable For Use With	Distribution Board Installation
Terminal Type	Screw Clamp
Tightening Torque	0.8 N-m
Transition Type	Open
Weight	0.25 kg
Width	55 mm
