Specifications

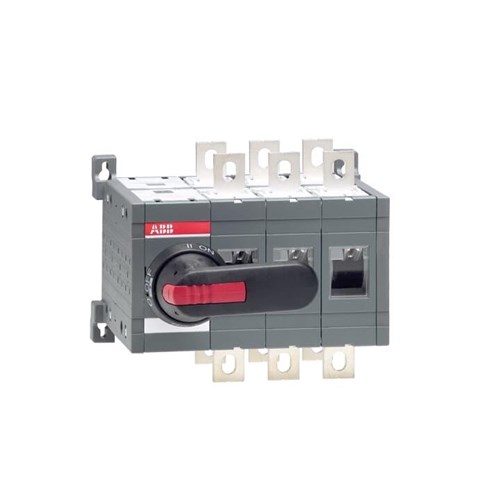

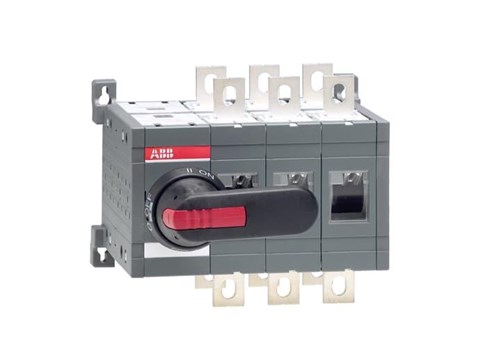

Product Type	Change-over switch
Brand	ABB
Series	OT315E03CP
Application	Manual change-over switch
Location of Connection	Top In-Bottom Out, Bottom In-Top Out
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V
Rated Operation Power at AC-23, 400 V	160000 W
Rated Operational Current AC21-A (Ie)	315 A
Rated Operational Current AC22-A (Ie)	315 A
Rated Operational Current AC23-A (Ie)	315 A
Rated Short Time Withstand Current (Icw)	8000 A
Short-time Withstand Current	8 kA
Suitable For	Distribution Board Installation
Power Loss	6.5 W
Rated Current	315 A
Rated Power	160 kW
Rated Voltage	415 VAC
Transition Type	Open
Terminal Type	Bolt
No. of Poles	3
Rated Thermal Current (Ith)	315 A
Colour Control Element	Black
Handle Type	Pistol
Indicators	I-O-II
Mounting Type	4-Hole Front Mount
Padlock Locking	Handle padlockable in the 0-position
Padlockable	Padlockable in O-Position
Tightening Torque	44 N-m
With Lock	Yes
Depth	203 mm
Height	185 mm
Weight	6000 g
Width	221 mm
Pollution Degree	3
IP Rating	IP20
NEMA Rating	NEMA 1
Standards and Approvals	CE, DNV
