Specifications

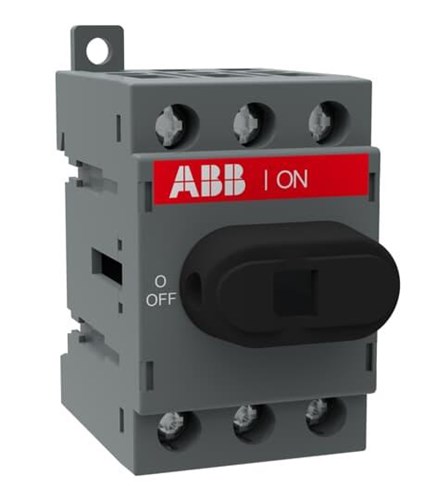

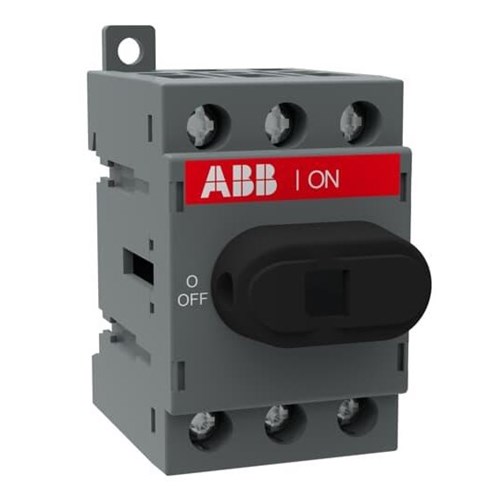

Product Type	Base Mount Switch Disconnector
Brand	ABB
Cable Cross Section	0.75-10 sq-mm
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	56 mm
Electrical Connection	Screw
Height	68 mm
Mode of Operation	Front
Mounting Type	Base
NEMA Rating	NEMA 1
Number of Poles	3
Operating Mechanism	Top of the Switch
Power Loss	1.6 W
Rated Current	40 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	750 V
Rated Power	11 kW
Rated Short Time Withstand Current	0.5 kA
Rated Voltage	750 VAC
Standards and Approvals	IEC 60947-3, UL 508, CSA C22.2 No. 14
Suitable For Use With	Distribution Board Installation
Terminal Type	Screw Clamp
Width	35 mm
