Specifications

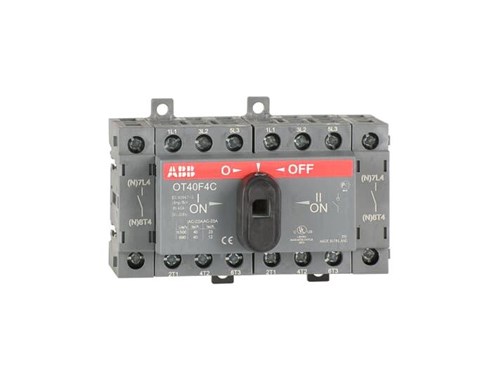

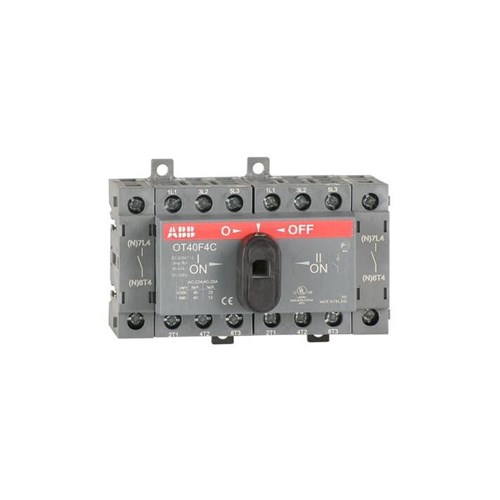

Product Type	Change-over switch
Brand	ABB
Series	OT40F4C
Application	Manual change-over switch
Location of Connection	Top In-Bottom Out, Bottom In-Top Out
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	750 V
Rated Operating Voltage	750 V
Rated Operation Power at AC-23, 400 V	11000 W
Rated Operational Current AC21-A (Ie)	40 A
Rated Operational Current AC22-A (Ie)	40 A
Rated Operational Current AC23-A (Ie)	23 A
Rated Short Time Withstand Current (Icw)	500 A
Short-time Withstand Current	0.5 kA
Suitable For	Distribution Board Installation
Power Loss	1.6 W
Rated Current	40 A
Rated Power	11 kW
Rated Voltage	415 VAC
Transition Type	Open
Terminal Type	Screw Clamp
No. of Poles	4
Rated Thermal Current (Ith)	40 A
Cable Cross Section	0.75-10 sq-mm
Colour Control Element	Black
Indicators	I-O-II
Mounting Type	4-Hole Front Mount
Tightening Torque	0.8 N-m
With Lock	Yes
Depth	68 mm
Height	68 mm
Weight	270 g
Width	96 mm
Pollution Degree	3
IP Rating	IP20
NEMA Rating	NEMA 1
Standards and Approvals	UL 98, IEC 60947-3, CE, DNV
