Specifications

Product Type	Changeover Switch Kit
Brand	ABB
Series	OT
Pole Type	Switched-Simultaneous Function
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)	40 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	750 V
Rated Operating Voltage	Main Circuit 750 V
Rated Operation Power at AC-23, 400 V	11 kW
Rated Operational Current AC21-A (Ie)	40 A
Rated Operational Current AC22-A (Ie)	40 A
Rated Operational Current AC23-A (Ie)	23 A
Rated Short Time Withstand Current (Icw)	for 1 s 0.5 kA rms
Power Loss	at Rated Operating Conditions per Pole 1.6 W
Rated Current	40 A
Rated Voltage	750 VAC/VDC
Transition Type	Open
No. of Poles	4P
Colour	Black

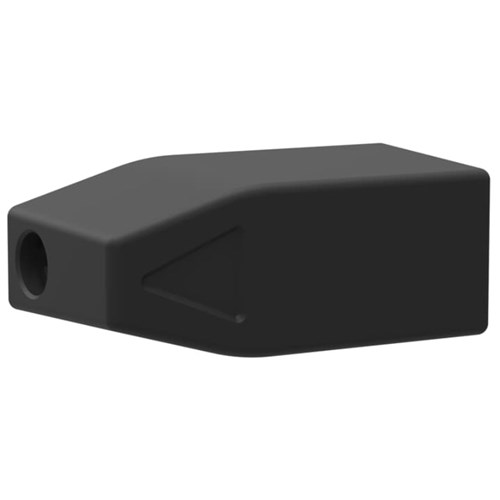

Handle Type	Knob
Mounting Type	DIN Rail
Padlockable	Non-Padalockable
Depth	68 mm (Only the switch)
Height	68 mm (Only the switch)
Weight	0.27 kg (Only the switch)
Width	96 mm (Only the switch)
Pollution Degree	3
Operating Temperature	-25 to +40 °C
IP Rating	Front IP20
Standards and Approvals	UL 98 / IEC60947-3

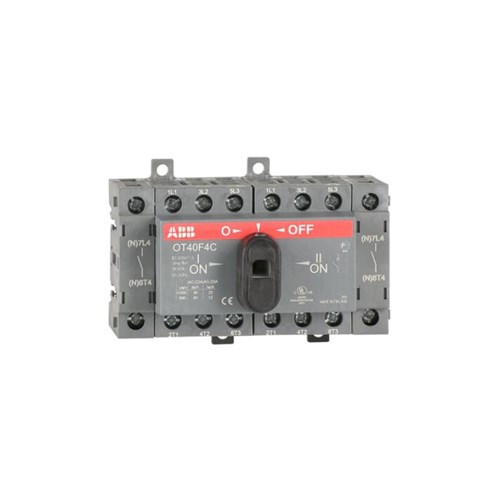

ABB CHANGEOVER SWITCH KIT 40A 4P/4P DIN PROFILE C/W NON PAD LOCK HANDLE UP TO 10MM2 CABLE
