Specifications

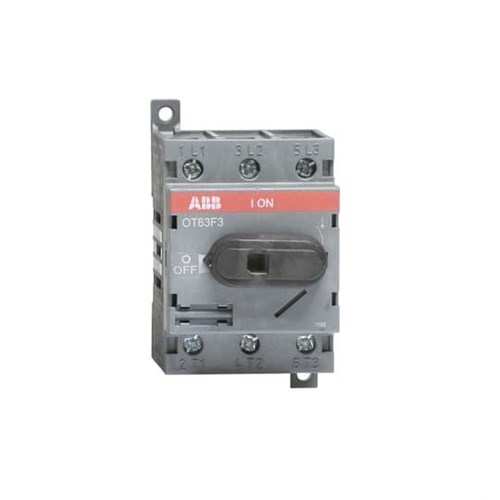

Product Type	Base Mount Switch Disconnector
Brand	ABB
Cable Cross Section	1.5-35 sq-mm
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	72.5 mm
Electrical Connection	Screw
Height	91.5 mm
Mode of Operation	Front
Mounting Type	Base
NEMA Rating	NEMA 1
Number of Poles	3
Operating Mechanism	Top of the Switch
Power Loss	2.8 W
Rated Current	63 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	750 V
Rated Power	15 kW
Rated Short Time Withstand Current	1.5 kA
Rated Voltage	750 VAC
Standards and Approvals	IEC 60947-3, UL 508, CSA C22.2 No. 14
Suitable For Use With	Distribution Board Installation
Terminal Type	Screw Clamp
Tightening Torque	2 N-m
Width	52.5 mm
Wire Stripping Length	12 mm
