Specifications

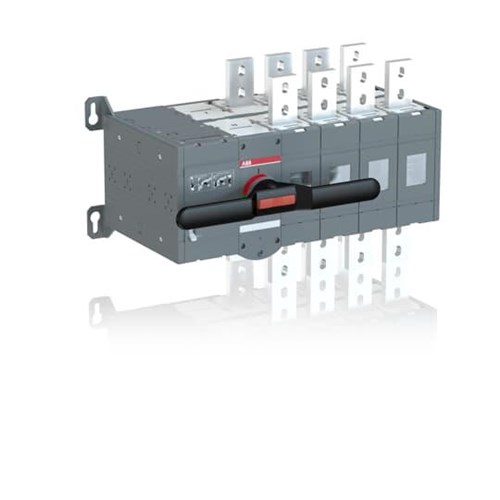

Product Type	Motorized C/O switch
Brand	ABB
Series	OTM1600E4CM230C
Application	Motorized C/O switch
Location of Connection	Top In-Bottom Out, Bottom In-Top Out
Pole Type	Switched-Simultaneous Function
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V
Rated Operation Power at AC-23, 400 V	710000 W
Rated Operational Current AC21-A (Ie)	1600 A
Rated Operational Current AC22-A (Ie)	1600 A
Rated Operational Current AC23-A (Ie)	1600 A
Rated Short Time Withstand Current (Icw)	50000 A
Short-time Withstand Current	50 kA
Suitable For	Distribution Board Installation
Power Loss	48 W
Rated Current	1600 A
Rated Power	710 kW
Rated Voltage	1000 VAC
Transition Type	Open
No. of Poles	4
Colour	Black
Colour Control Element	Black
Mounting Type	4-Hole Front Mount
Tightening Torque	75 N-m
With Lock	Yes
Depth	372 mm
Height	372 mm
Weight	69000 g
Width	587 mm
Pollution Degree	3
IP Rating	IP20
NEMA Rating	NEMA 1
Standards and Approvals	CE
