Specifications

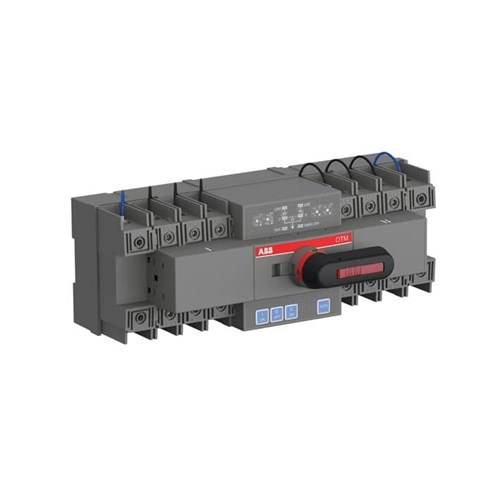

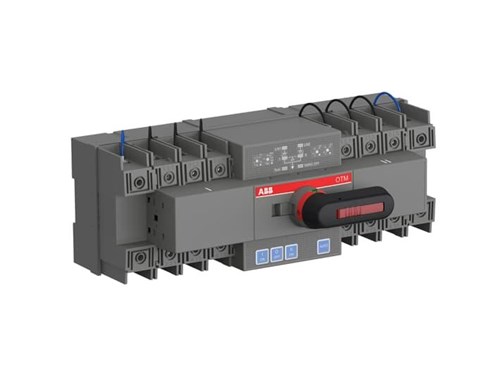

Product Type	Automatic transfer switch
Brand	ABB
Series	Compact ATS
Application	Network - Network, Network - Genset
Location of Connection	Supplies on Top-Load on Bottom
Pole Type	Switched-Simultaneous Function
Position of Line Terminals	Supplies on Top - Load on Bottom
Rated Current (In)	63 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	800 V
Rated Operating Voltage	380 to 415 V AC
Rated Operation Power at AC-23, 400 V	380000 W
Rated Operational Current AC21-A (Ie)	63 A
Rated Operational Current AC22-A (Ie)	63 A
Rated Operational Current AC23-A (Ie)	63 A
Power Loss	2.8 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Power	30 kW
Rated Voltage	380-415 V
Rated Withstand Current	2.5 kA
Special Functions	Self-supplied unit with adjustable operating parameters
Transition Type	Open
Terminal Type	Screw Clamp
No. of Poles	4
Controller Type	21D
Motor Rated Voltage	380-415 VAC
Rated Thermal Current (Ith)	63 A
Handle Type	Direct Mounted
Mechanical Endurance	10000 cycles
Mounting Type	Base, DIN Rail
Padlockable	Padlockable in O-position
Tightening Torque	6 N-m
Depth	131 mm
Height	103 mm
Length	131 mm
Weight	2.11 kg
Width	286 mm
Rated Surrounding Temperature Without Derating	40 degC
Pollution Degree	3
Storage Temperature	-25 to 70 degC
Operating Temperature	-20 to 55 degC
IP Rating	IP20
Standards and Approvals	IEC 60947-1, IEC 60947-6-1
