Specifications

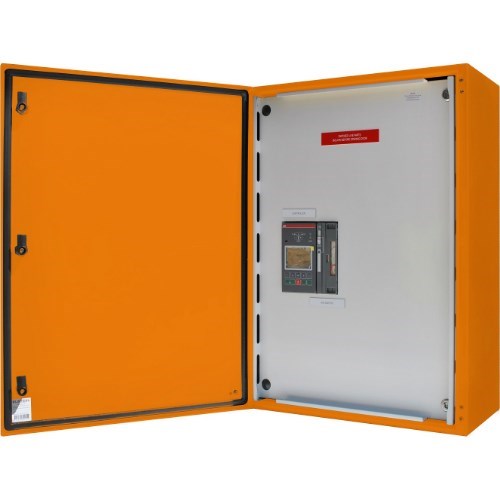

Product Type	Automatic Transfer Switch
Brand	ABB
Series	TruONE
Application	Commercial buildings, manufacturing, utilities
Max. Rated Operation AC Voltage (Ue)	480 V
Position of Line Terminals	Supplies on Top - Load on Bottom
Rated Current (In)	1000 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	Main Circuit 200...480 V AC
Rated Operation Power at AC-31b (Ie)	(200 … 415 V AC) 1000 A
Rated Short Time Withstand Current (Icw)	for 0.1 s 65 kiloampere rms
Power Loss	at Rated Operating Conditions per Pole 14 W Total 42 W
Rated Current	1000 A
Rated Frequency	Main Circuit 50-60 Hz
Special Functions	Open style
Transition Type	Delayed
No. of Poles	4
Colour	Orange, RAL2000
Material	Mild Steel
Depth	212 mm
Height	359 mm
Weight	37.11 kg
Width	712 mm
Pollution Degree	3
Operating Temperature	-25 to +70 °C
IP Rating	Front IP20
Standards and Approvals	IEC60947-6-1
