Specifications

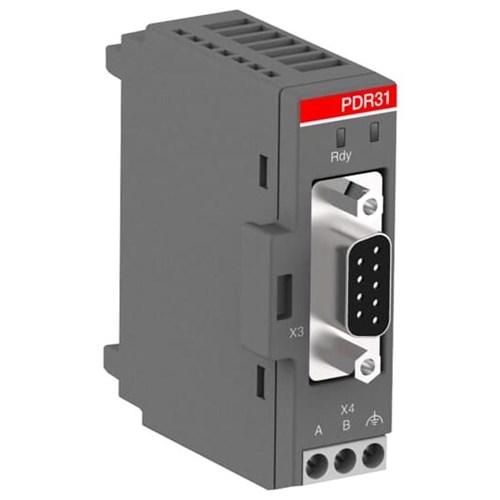

Product Type	PROFIBUS Termination Unit
Brand	ABB
Rated Control Supply Voltage (Us)	24 V DC
Suitable For	UMC100; SMK3.0
Wi-Fi Connection	1
Rated Voltage	24 VDC
Terminal Type	Screw terminals
No. Of PROFINET Interfaces	1
Connecting Capacity	1× 0.2–2.5 mm²
Mounting Type	UMC100.3 / single mounting
Depth	59 mm
Height	64 mm
Length	59 mm
Weight	0.03 kg
Width	22.5 mm
IP Rating	IP20
Serial Ports	1
USB Port	1
Communication Protocols	PROFIBUS
Standards and Approvals	IEC/EN 61131-2
Standards	IEC/EN 61131-2
