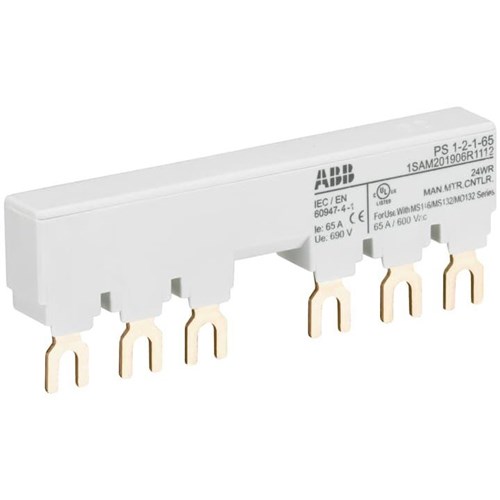

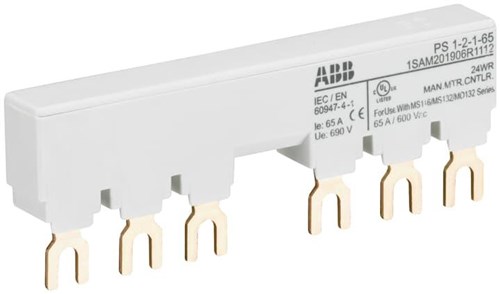

ABB PS1-2-1-65 Busbar 3-P 65A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-2-1-65

  • Rated current of 65 A
  • Compact dimensions: 95.5x32.3x13 mm
  • Operates in -25 to 70°C range
  • Suitable for MS116, MS132, MO132 starters
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 32.3 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 1
Number of Mountable Devices 2
Number of Poles 3
Phase 3
Rated Current 65 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.036 kg
Width 95.5 mm

Description

<p>When selecting the right accessory for your industrial or commercial setup, it&amp;#39;s crucial to consider a product that seamlessly integrates with your existing equipment while meeting all necessary technical standards. This particular accessory is designed with these requirements in mind, offering robust performance and compatibility.</p><p>With a rated current of 65 A, this accessory ensures reliable operation within its specified range. Its dimensions—95.5 mm in width, 32.3 mm in height, and 13 mm in depth—make it compact enough to fit into various setups without compromising on functionality. The grey color allows it to blend unobtrusively into most environments.</p><p>Meeting rigorous standards such as IEC/EN 60947-1, IEC/EN 60947-4-1 as well as UL equivalents (UL 60947-1 and UL 60947-4-1), this accessory adheres to international safety and performance benchmarks. This assures users of its reliability and compliance with global electrical safety requirements.</p><p>Weighing just 0.036 kg, the lightweight design does not sacrifice durability or robustness. It can withstand a rated impulse voltage of up to 6 kV and handle short circuit currents up to an impressive 100 kA. These features make it suitable for demanding applications where high resilience is required.</p><p>The rated voltage capacity spans both AC (690 V) and DC (250 V), providing versatility across different power systems. With three poles available, this accessory offers comprehensive connectivity options enhanced by its fork connection type which facilitates easy integration into existing circuits.</p><p>Designed for environments ranging from -25&amp;#176;C to +70&amp;#176;C ambient temperatures, this accessory performs reliably under varied climatic conditions ensuring long-term stability even when exposed to extreme weather variations.</p><p>Its IP20 degree of protection ensures safety against solid objects greater than 12 mm like fingers or similar-sized tools while maintaining operational integrity in less harsh environments due to its IP3 pollution degree rating.</p><p>Notably compatible with MS116, MS132, and MO132 motor starters, this product enhances system efficiency by working seamlessly alongside these popular models ensuring optimal performance across applications requiring such configurations.</p>
