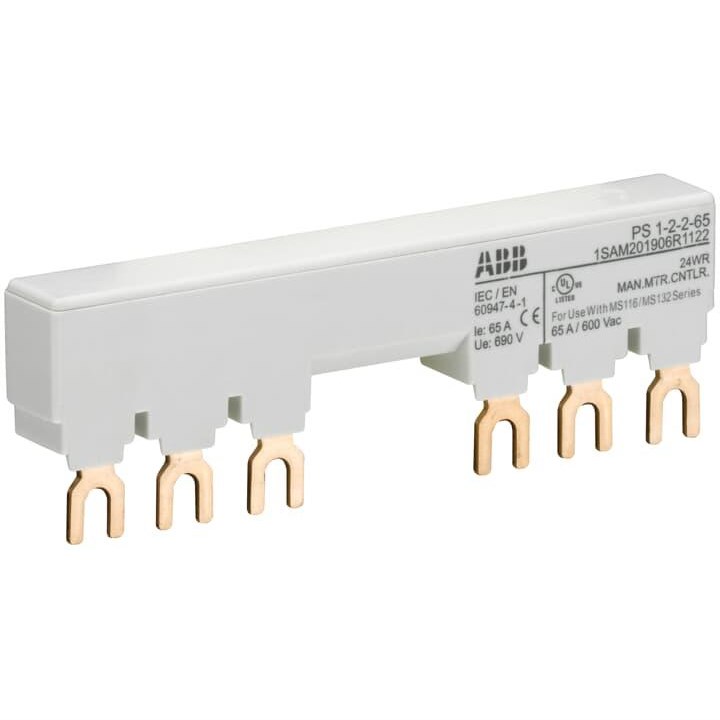

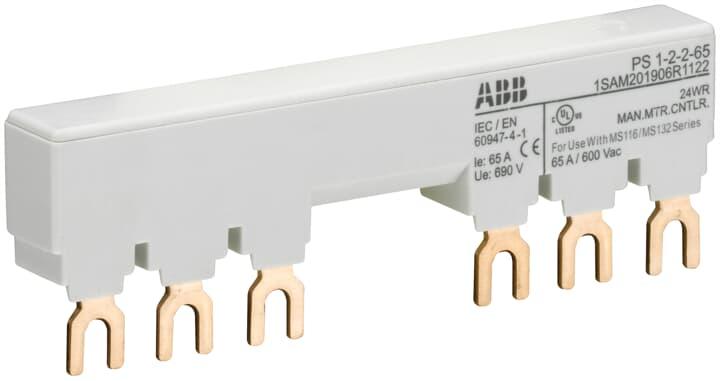

ABB PS1-2-2-65 Busbar 3-P 65A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-2-2-65

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Busbar
Brand ABB
Connection Type Fork
Rated Current 65 A
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Colour Grey
Depth 13 mm
Height 32.3 mm
Weight 0.04 kg
Width 104.5 mm
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1

Documents

IPD Product Catalogue V17
ABB Brochure
ABB Catalogue
ABB Datasheet
Instructions

Certificate

cUL_Certification
EU Declaration of Conformity
REACH Certification
RoHS Certification
