Specifications

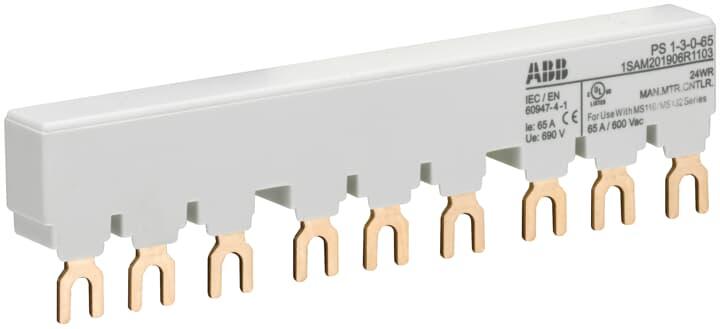

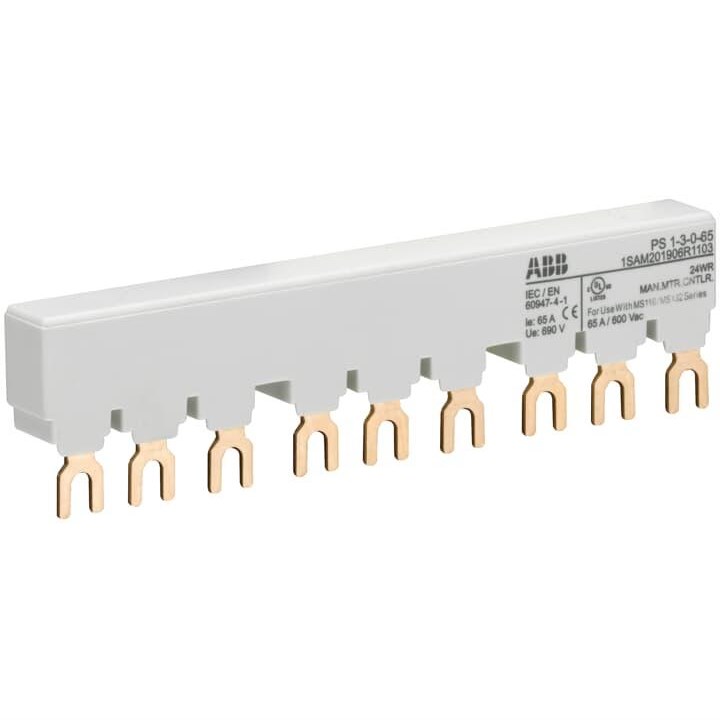

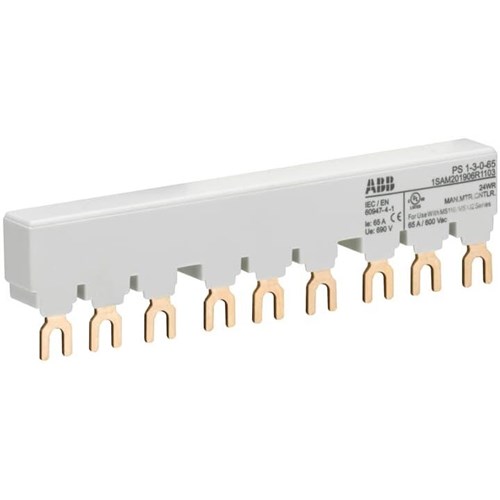

Product Type	Busbar
Brand	ABB
Connection Type	Fork
No. of Phases	3
Rated Impulse Withstand Voltage (Uimp)	6 kV
Suitable For	MS116, MS132 and MO132 Motor Starters
Rated Current	65 A
Rated Short Circuit Current	100 kA
Rated Voltage	690/250 VAC/VDC
Colour	Grey
Depth	13 mm
Height	32.3 mm
Weight	0.055 kg
Width	131.5 mm
Pollution Degree	3
Operating Temperature	-25 to 70 deg C
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
