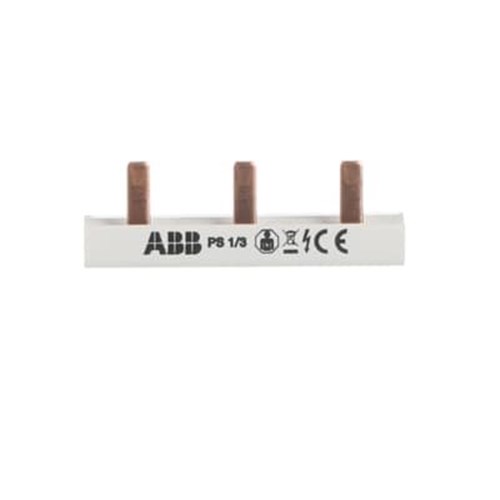

ABB PS1/3 Busbar 3-P 690VAC/DC 63A 1PH Pin 10sq-mm 3-Pin 53mm For: S200 F200 DDA200

Product Code: PS1/3

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Busbar
Brand ABB
Cable Cross Section 10 sq-mm
Colour RAL 7035 Light Grey
Connection Type Pin
Degree of Pollution IP2
Height 17 mm
Length 53 mm
Number of Mountable Devices 3
Number of Pins 3
Number of Poles 3
Phase 1
Rated Current 63 A
Rated Frequency 50/60 Hz
Rated Voltage 690 VAC/VDC
Short Circuit Capacity 25 kA
Standards and Approvals IEC/EN 60947-1
Suitable For Use With S200, F200, DDA200
Weight 0.025 kg
Width 20 mm

Documents

IPD Product Catalogue V17
ABB Datasheet

Certificate

EU Declaration of Conformity
REACH Certification
