Specifications

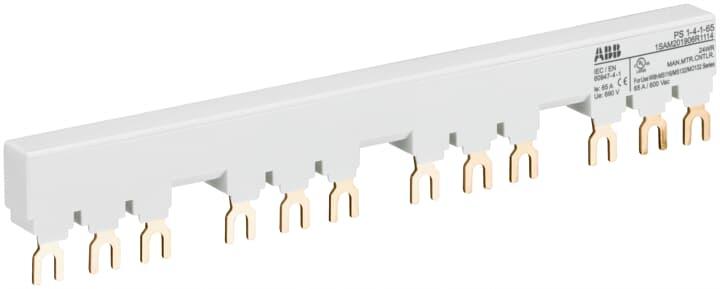

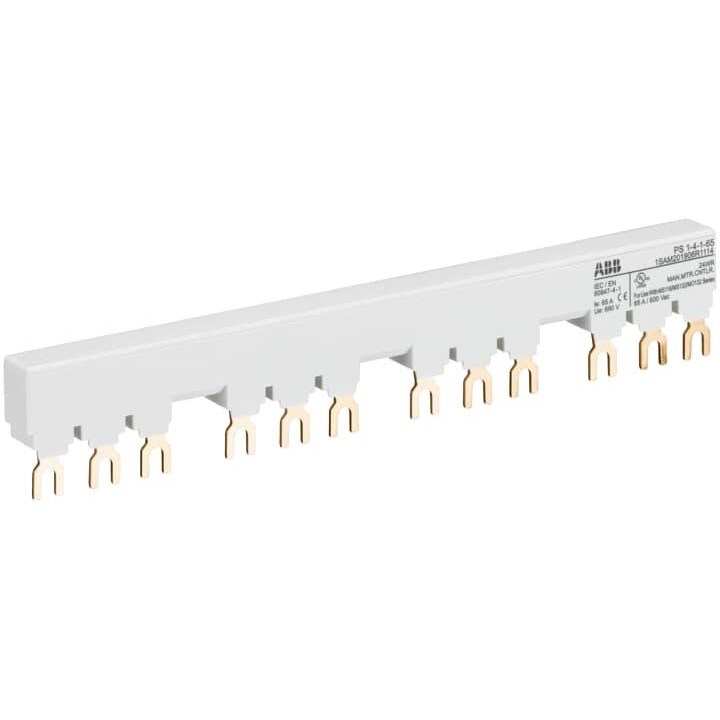

Product Type	Busbar
Brand	ABB
Ambient Temperature	-25 to 70 deg C
Colour	Grey
Connection Type	Fork
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	13 mm
Height	32.3 mm
Module Width	14 mm
Number of Lateral Auxiliary Contacts	1
Number of Mountable Devices	4
Number of Poles	3
Phase	3
Rated Current	65 A
Rated Impulse Withstand Voltage	6 kV
Rated Short Circuit Current	100 kA
Rated Voltage	690/250 VAC/VDC
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With	MS116, MS132 and MO132 Motor Starters
Weight	0.087 kg
Width	203.5 mm
