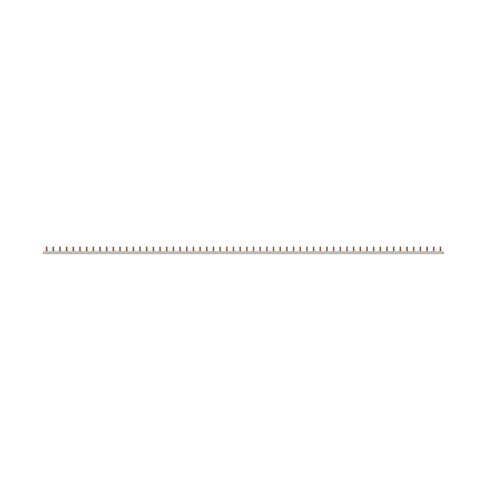

ABB PS1/60/16 Busbar 60-P 690VAC/DC 80A 1PH Pin 16sq-mm 60-Pin 1050mm For: S200 F200 DDA200

Product Code: PS1/60/16

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Busbar
Brand ABB
Cable Cross Section 16 sq-mm
Colour RAL 7035 Light Grey
Connection Type Pin
Degree of Pollution IP2
Height 17 mm
Length 1050 mm
Number of Mountable Devices 60
Number of Pins 60
Number of Poles 60
Phase 1
Rated Current 80 A
Rated Frequency 50/60 Hz
Rated Voltage 690 VAC/VDC
Short Circuit Capacity 25 kA
Standards and Approvals IEC/EN 60947-1
Suitable For Use With S200, F200, DDA200
Weight 0.41 kg
Width 20 mm
