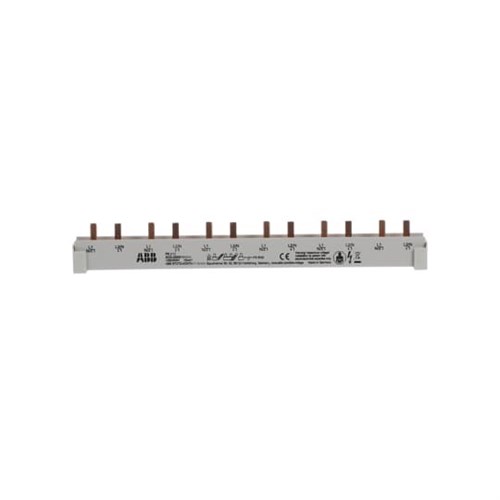

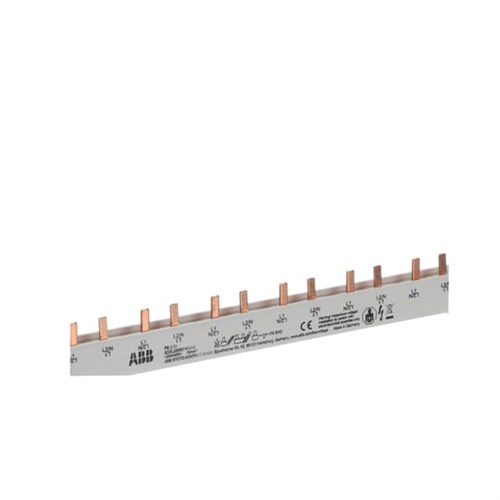

ABB PS2/12 Busbar 12-P 230/400VAC 690VAC 63 Amp 2PH Pin 10sq-mm 12-Pin 214mm For: S200 F200 DDA200

Product Code: PS2/12

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Busbar
Brand ABB
Connection Type Pin
No. of Phases 2
Suitable For S200, F200, DDA200
Rated Current 63 A
Rated Frequency 50/60 Hz
Rated Voltage 230/400 VAC, 690 VAC
Short Circuit Capacity 25 kA
Cable Cross Section 10 sq-mm
Colour RAL 7035 Light Grey
No. of Pins 12
Height 30.3 mm
Length 214 mm
Weight 0.075 kg
Width 18 mm
Pollution Degree 2
Standards and Approvals IEC/EN 60947-1

Documents

IPD Product Catalogue V17
ABB Datasheet

Certificate

EU Declaration of Conformity
REACH Certification
