Specifications

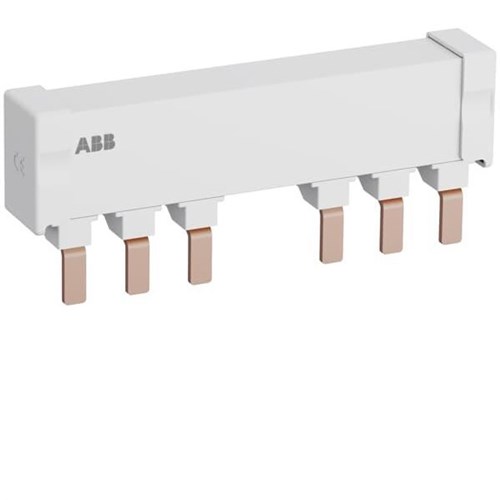

Product Type	Busbar
Brand	ABB
Ambient Temperature	-25 to 40 deg C
Colour	Grey
Connection Type	Pin
Degree of Protection	IP20
Depth	22 mm
Height	53 mm
Module Width	18 mm
Number of Lateral Auxiliary Contacts	2
Number of Mountable Devices	2
Number of Poles	6
Phase	3
Rated Current	125 A
Rated Impulse Withstand Voltage	8 kV
Rated Short Circuit Current	100 kA
Rated Voltage	690 VAC
Standards and Approvals	IEC/EN 60947-4-1
Suitable For Use With	MS165, MO165 Motor Starters
Weight	0.117 kg
Width	131 mm
