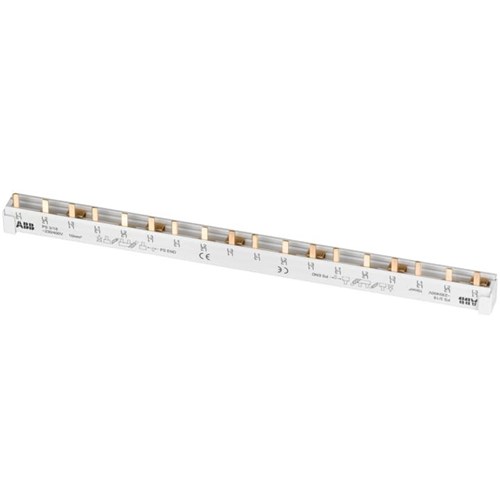

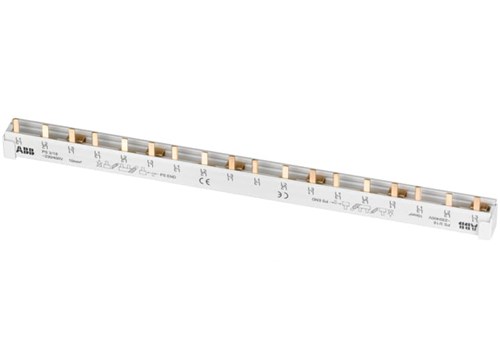

ABB PS3/60/16 Busbar 16-P 230/400VAC 690VAC 80A 3PH Pin 16sq-mm 60-Pin 1056mm For: S200 F200 DDA200

Product Code: PS3/60/16

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Busbar
Brand ABB
Cable Cross Section 16 sq-mm
Colour RAL 7035 Light Grey
Connection Type Pin
Degree of Pollution IP2
Height 29 mm
Length 1056 mm
Number of Mountable Devices 5
Number of Pins 60
Number of Poles 16
Phase 3
Rated Current 80 A
Rated Frequency 50/60 Hz
Rated Voltage 230/400 VAC, 690 VAC
Short Circuit Capacity 25 kA
Standards and Approvals IEC/EN 60947-1
Suitable For Use With S200, F200, DDA200
Weight 0.666 kg
Width 16 mm
