Specifications

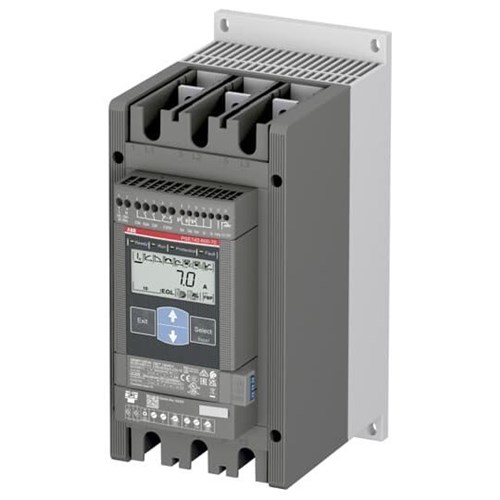

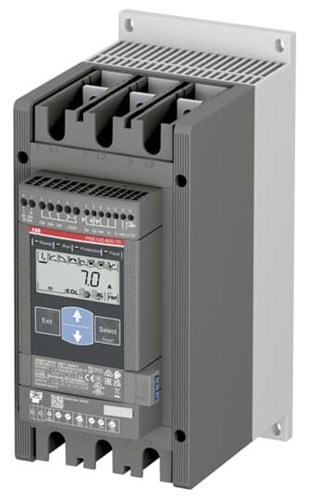

Product Type	Softstarter
Brand	ABB
Actuating Voltage Type	AC
Ambient Temperature	-40 to 70 deg C
Analogue Outputs	4-20 mA
Circuit Voltage	24 VDC
Colour	Green
Communication	Modbus RTU
Connecting Capacity	1/2 x 2.5-70 sq-mm Rigid
Degree of Protection	IP00
Depth	220 mm
Fault Signal Relay	Yes
Function	Soft Start with Torque Control, Soft Start With Voltage Ramp, Soft Stop With Torque Control, Soft Stop With Voltage Ramp, Kick Start, Sequence Start, Current Limit, Start Reverse (External Contactors), Automatic Restart, Event Log
Height	295 mm
HP Rating	40 hp, 50 hp, 100 hp, 125 hp
Integrated Electronic Overload	Yes
Number of Starts Per Hour	10
Operational Temperature	-25 to 60 deg C
Overload Protection	Yes
Overload Signal Relay	Yes
Rated Current	143 A
Rated Frequency	50/60 Hz
Rated Power	40 kW, 75 kW, 90 kW
Rated Voltage	208-600 VAC
Release Class	Adjustable
Service Factor	100%
Terminal Type	Bar
Tightening Torque	0.5 N-m Control Circuit, 18 N-m Main Circuit, 0.5 N-m Supply Circuit
Weight	4.4 kg
Width	130 mm
