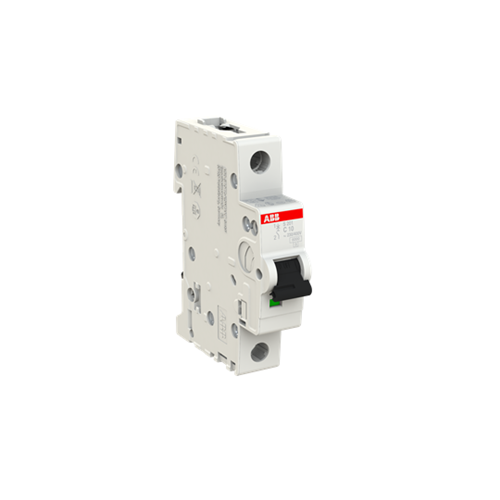

ABB S201C10 Miniature Circuit Breaker 6 kA at 230VAC 1-P 10A 230/400VAC C-Curve

Product Code: S201C10

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Series S200
Application Commercial and Industrial
Power Loss 2.1 W
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Short Circuit Current 6 kA
Rated Voltage 230/400 VAC
Trip Curve C Curve
Terminal Type Screw Clamp
Cable Cross Section 35 sq-mm Top, 35 sq-mm Bottom
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Mounting Type DIN Rail
Wire Stripping Length 12.5 mm
Depth 69 mm
Height 88 mm
Width 17.5 mm
Pole Width 17.5 mm
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077

Documents

IPD Product Catalogue V17
ABB Brochure
ABB Catalogue
ABB Datasheet
Instructions

Certificate

Environmental Product Declaration
EU Declaration of Conformity
REACH Certification
