Specifications

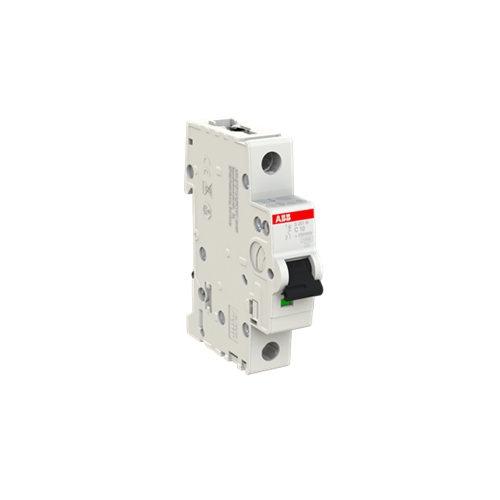

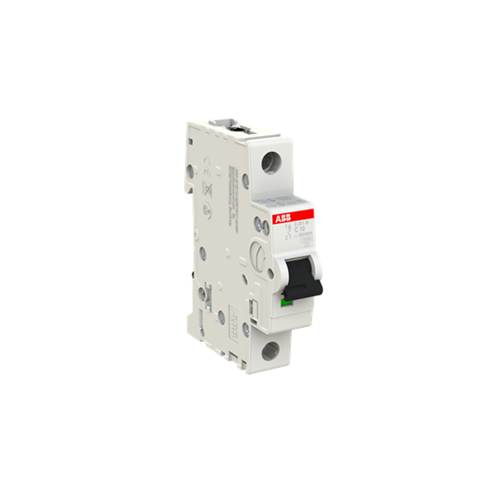

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200M
Application	Commercial and Industrial
Busbar Cross Section	10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section	35 sq-mm Top, 35 sq-mm Bottom
Collection	S200M
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Height	88 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group II, RAL 7035
Impulse Voltage	4 kV
Mounting Type	DIN Rail
Number of Poles	1
Pole Width	17.5 mm
Power Loss	2.1 W
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Short Circuit Current	10 kA
Rated Voltage	230/400 VAC
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Trip Curve	C Curve
Width	17.5 mm
