Specifications

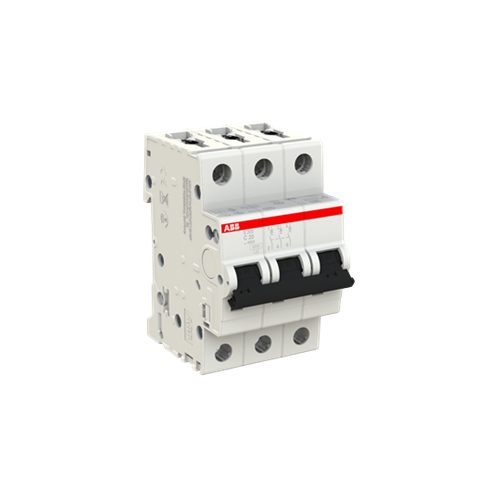

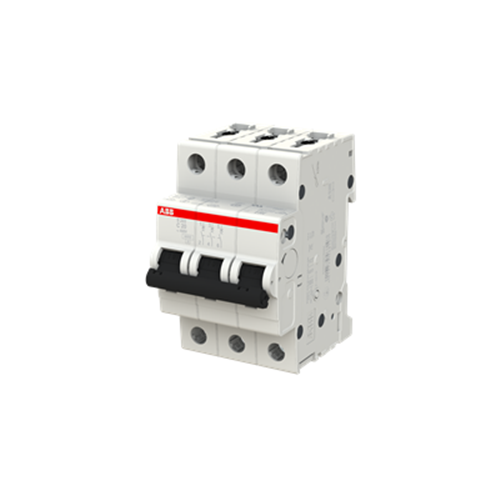

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200
Application	Commercial and Industrial
Electrical Endurance	20000 Cycles
Rated Cross-Section	10 sq-mm Top, 10 sq-mm Bottom
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	440 V
Power Loss	2.5 W
Rated Current	20 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	6 kA
Rated Voltage	400/415 VAC
Trip Curve	C
Terminal Type	Screw Clamp
Cable Cross Section	35 sq-mm Top, 35 sq-mm Bottom
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group II, RAL 7035
Mounting Type	DIN Rail
Tightening Torque	2.8 N-m
Wire Stripping Length	12.5 mm
Depth	69 mm
Height	88 mm
Width	52.5 mm
Pole Width	17.5 mm
Pollution Degree	3
Operating Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
IP Rating	IP20
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
