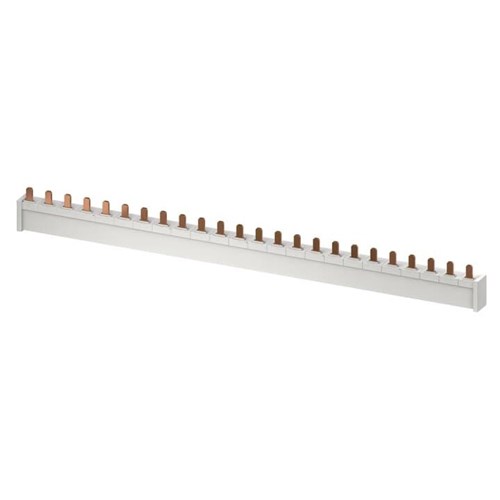

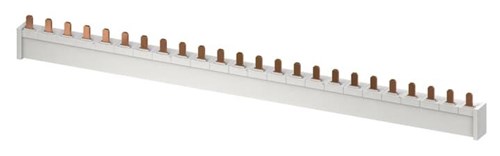

ABB S803-BB250 Busbar 400/690VAC 250A 60sq-mm For: S800S S800N S800C S800B

Product Code: S803-BB250

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Busbar
Brand ABB
No. of Phases 3
Rated Insulation Voltage (Ui) 690 VAC
Suitable For S800S, S800N, S800C, S800B
Rated Current 250 A
Rated Frequency 50/60 Hz
Rated Voltage 400/690 VAC
Terminal Type Screw Clamp
Cable Cross Section 60 sq-mm
Colour RAL 7035 Light Grey
Model Flat
No. of Pins 24
Tightening Torque 3.5 N-m
Height 27 mm
Length 654 mm
Weight 1604 g
Width 60 mm
Operating Temperature -25 to 60 deg C
IP Rating IP20
Standards and Approvals IEC 60439-2
