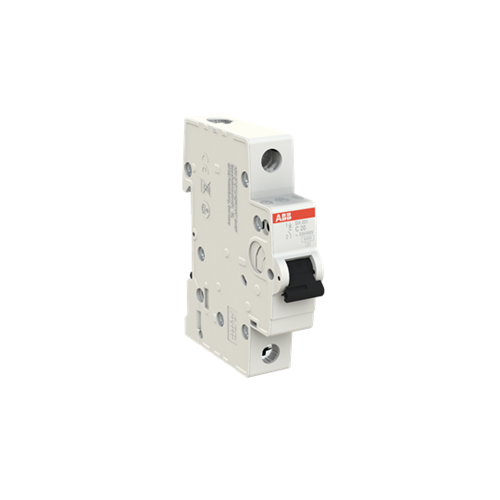

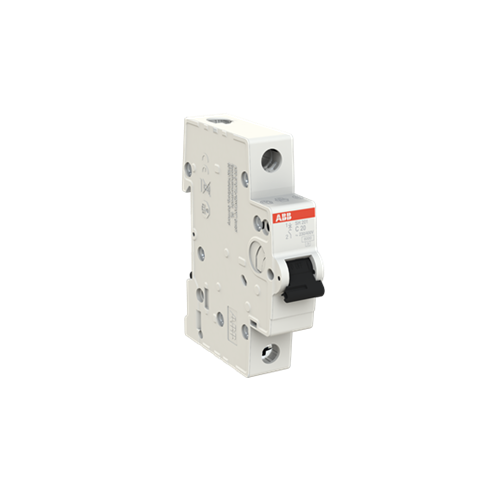

ABB SH201C20 Miniature Circuit Breaker 6 kA 1-P 20A 230/400VAC C-Curve

Product Code: SH201C20

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Series SH200
Application Domestic
Power Loss 2.5 W
Rated Current 20 A
Rated Frequency 50/60 Hz
Rated Short Circuit Current 6 kA
Rated Voltage 230/400 VAC
Trip Curve C Curve
Terminal Type Screw Clamp
Actuator Type Toggle
Cable Cross Section 25 sq-mm Top, 25 sq-mm Bottom
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Mounting Type DIN Rail
Tightening Torque 2 N-m
Depth 69 mm
Height 85 mm
Width 17.5 mm
Pole Width 17.5 mm
Standards and Approvals AS/NZS 60898-1

Documents

IPD Product Catalogue V17
ABB Catalogue
ABB Datasheet
Instructions

Certificate

Environmental Product Declaration
EU Declaration of Conformity
REACH Certification
