Specifications

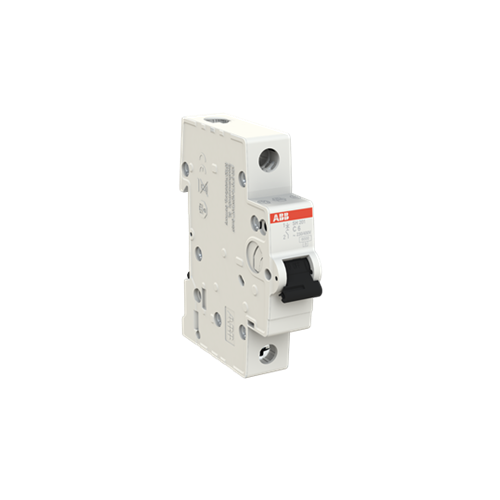

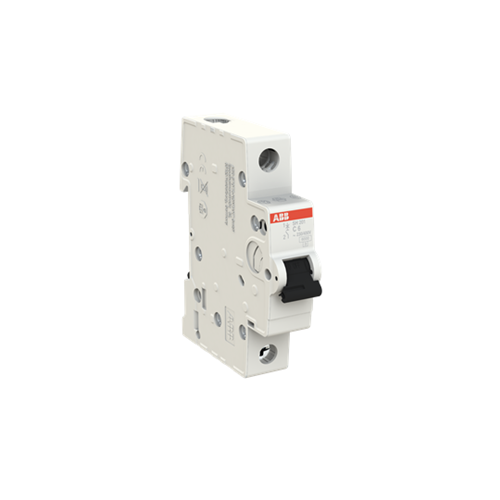

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	SH200
Application	Domestic
Electrical Endurance	20000 Cycles
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	440 V
Power Loss	2 W
Rated Current	6 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	6 kA
Rated Voltage	230/400 VAC
Trip Curve	C
Terminal Type	Screw Clamp
Actuator Type	Toggle
Cable Cross Section	25 sq-mm Top, 25 sq-mm Bottom
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group II, RAL 7035
Mounting Type	DIN Rail
Tightening Torque	2 N-m
Depth	69 mm
Height	85 mm
Width	17.5 mm
Pole Width	17.5 mm
Pollution Degree	2
Operating Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
IP Rating	IP20
Standards and Approvals	AS/NZS 60898-1
