Specifications

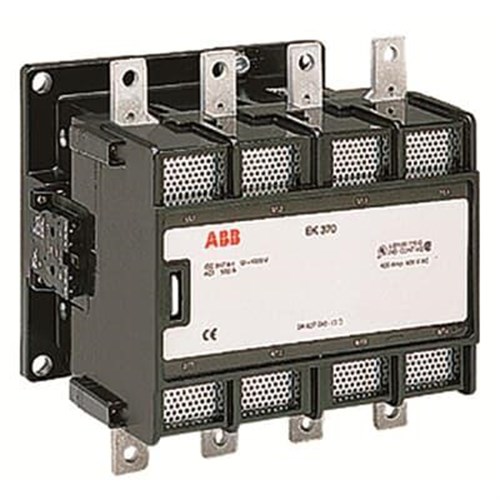

Product Type	Contactor
Brand	ABB
No. of Poles (Total)	4P
Rated Control Supply Voltage (Us)	24 - 690 V AC, 24-220 V DC
Rated Operational Current AC-1 <= 690V (Ie)	(690 V) 40 °C 800 A
Rated Operational Current AC-1 1000V (Ie)	(1000 V) 40 °C 800 A
Rated Operational Current AC-3 1000V (Ie)	(1000 V) 55 °C 175 A
Rated Operational Current AC-3 400V (Ie)	(440 V) 55 °C 550 A
Rated Operational Current AC-3 690V (Ie)	(690 V) 55 °C 550 A
Rated Operational Power AC-3 1000V (Pe)	(1000 V) 35 kW
Rated Operational Power AC-3 400V (Pe)	(415 V) 315 kW
Rated Operational Power AC-3 690V (Pe)	(690 V) 500 kW
Rated Frequency	50 / 60 Hz
No. of Auxiliary Contacts (NO/NC)	1 NO + 1 NC
Depth	225.5 mm
Height	272 mm
Weight	15.5 kg
Width	270 mm
Operating Temperature	-25 to 55 °C (Fitted with Thermal O/L Relay)
Standards and Approvals	IEC 60947-4-1, IEC 60947-1
