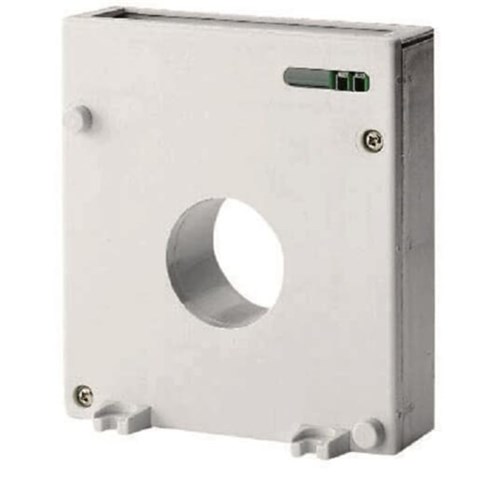

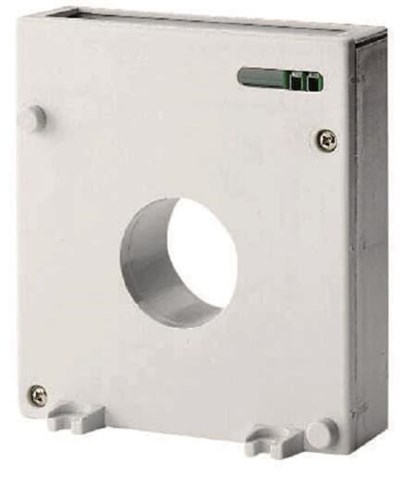

ABB TR160A Toroidal Transformer 160mm

Product Code: TR160A

1

Specifications

Product Type	Toroidal transformer
Brand	ABB
Series	TR
Application	Commercial and Industrial
Rated Current	400 A
Rated Frequency	50 to 400 Hz
Rated Power	1600 VA
Terminal Type	Screw terminal boards
Rated Residual Current	500 mA (minimum measurable)
Depth	64 mm
Height	236 mm
Weight	1.15 kg
Width	220 mm
Opening Diameter	160 mm
Storage Temperature	-20 to 80 °C
Operating Temperature	-10 to 70 °C
IP Rating	IP20
Standards and Approvals	CEI EN 50081-2; CEI EN 50082-2; CEI 41.1

Documents

IPD Product Catalogue V17

ABB Brochure

ABB Catalogue

ABB Datasheet

Certificate

EU Declaration of Conformity
