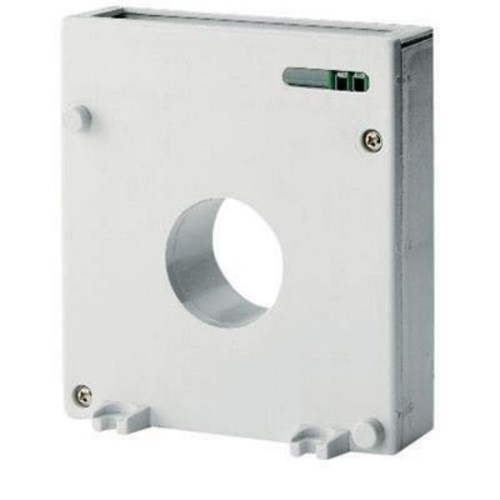

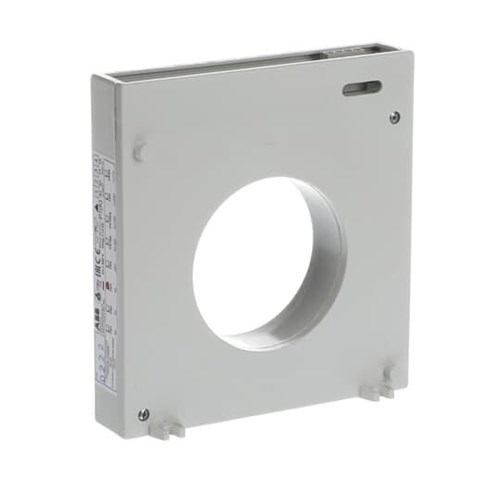

ABB TR3 Toroidal Transformer 100A Primary 80mm

Product Code: TR3

1

Specifications

Product Type	Toroidal transformer
Brand	ABB
Series	TR
Application	Commercial and Industrial
Rated Insulation Voltage (Ui)	1000 V
Rated Current	160 A
Rated Frequency	50 to 400 Hz
Terminal Type	Screw terminal boards
Rated Residual Current	100 mA (minimum measurable)
Depth	50 mm
Height	160 mm
Weight	0.4 kg
Width	150 mm
Opening Diameter	80 mm
Storage Temperature	-20 to 80 °C
Operating Temperature	-10 to 70 °C
IP Rating	IP20
Standards and Approvals	CEI EN 50081-2; CEI EN 50082-2; CEI 41.1

Documents

IPD Product Catalogue V17

ABB Brochure

ABB Catalogue

ABB Datasheet

Certificate

EU Declaration of Conformity
