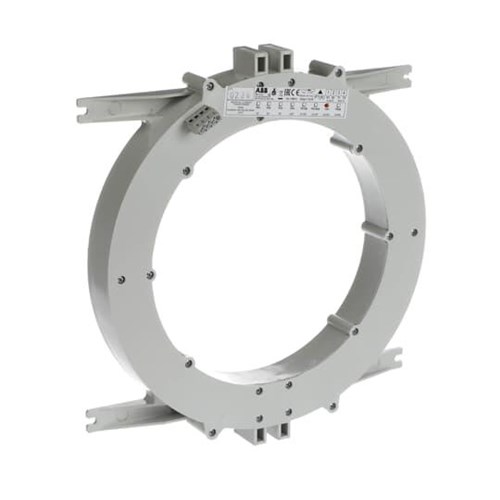

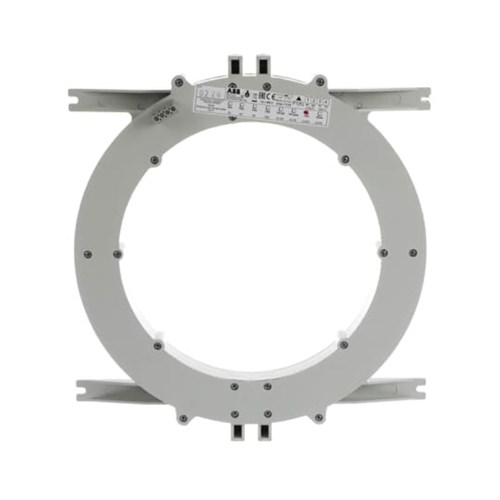

ABB TR5 Toroidal Transformer 16A Primary 8A Secondary 210mm

Product Code: TR5

1

Specifications

Product Type	Toroidal transformer
Brand	ABB
Series	TR
Application	Commercial and Industrial
Rated Insulation Voltage (Ui)	1000 V
Rated Current	630 A
Rated Frequency	50 to 400 Hz
Rated Power	200 VA
Terminal Type	Screw terminal boards
Rated Residual Current	300 mA (minimum measurable)
Depth	55 mm
Height	310 mm
Weight	1.05 kg
Width	290 mm
Opening Diameter	210 mm
Storage Temperature	-20 to 80 °C
Operating Temperature	-10 to 70 °C
IP Rating	IP20
Standards and Approvals	CEI EN 50081-2; CEI EN 50082-2; CEI 41.1
