Specifications

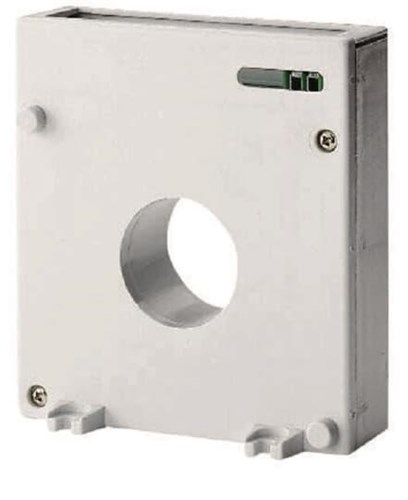

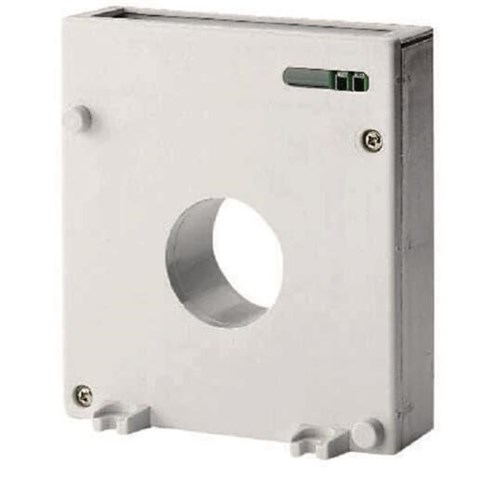

Product Type	Toroidal transformer
Brand	ABB
Series	TR
Application	Commercial and Industrial
Rated Insulation Voltage (Ui)	1000 V
Rated Current	65 A
Rated Frequency	50 to 400 Hz
Rated Power	5 VA
Terminal Type	Screw terminal boards
Rated Residual Current	30 mA (minimum measurable)
Depth	58 mm
Height	85 mm
Weight	0.13 kg
Width	58 mm
Width in No. of Modular Spacing	3
Opening Diameter	29 mm
Storage Temperature	-20 to 80 °C
Operating Temperature	-10 to 70 °C
IP Rating	IP20
Standards and Approvals	CEI EN 50081-2; CEI EN 50082-2; CEI 41.1
