Specifications

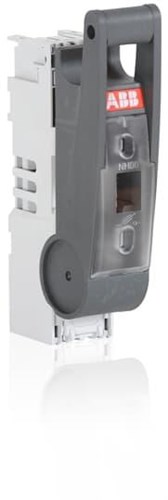

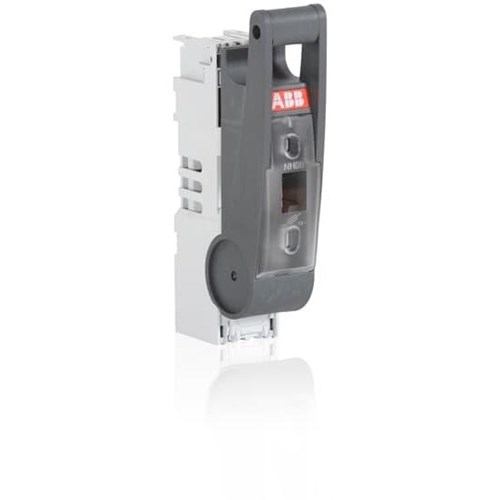

Product Type	Fuse switch disconnector
Brand	ABB
Series	EasyLine XLP
Application	Fuse switch disconnection and protection in low-voltage distribution
Power Loss	3.5 W
Rated Current	160 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	50 kA rms
Rated Voltage	690 V AC
No. of Poles	1P
Connection/Termination	Lug terminals
Mounting	Base mount
Size Code	NH00 / NH000
Depth	88 mm
Height	185 mm
Weight	0.24 kg
Width	40 mm
IP Rating	IP30
Standards and Approvals	IEC 60947-3
