Specifications

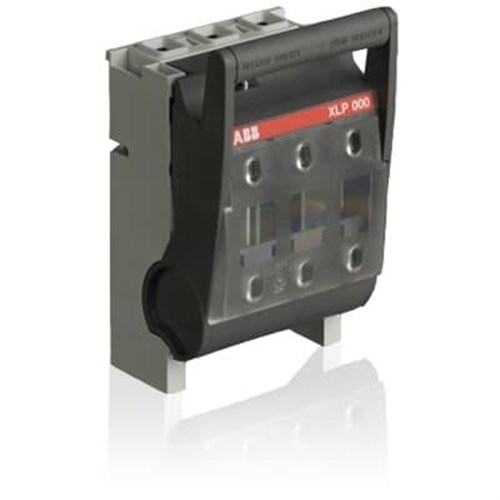

Product Type	Fuse Switch Disconnector
Brand	ABB
No. of Poles (Total)	3P
Rated Current (In)	100 A
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Insulation Voltage (Ui)	690 V
Rated Operational Voltage (Ue)	400 V AC 500 V AC 690 V AC
Utilization Category	AC23B AC22B AC21B
Power Loss	at Rated Load 1.4 W
Rated Frequency	50/60 Hz
Rated Voltage	400 V AC 500 V AC 690 V AC
Terminal Type	Cable Clamp
Fuse Size	NH000 NH00C
Rated Conditional Short-Circuit Current (Inc)	50 kiloampere rms
Rated Operational Current AC-21B (Ie)	(690 V) 50 A
Rated Operational Current AC-22B (Ie)	(500 V) 100 A
Rated Operational Current AC-23B (le)	(400V) 80 A
Electrical Durability	300
Mechanical Durability	1700
Fuse System	DIN
Handle Type	Front Cover 3P
Mounting Type	Baseplate
Depth	80 mm
Height	152 mm
Weight	0.4 kg
Width	90 mm
IP Rating	IP30
Standards and Approvals	IEC60947-3 GB/T14048.3
