Specifications

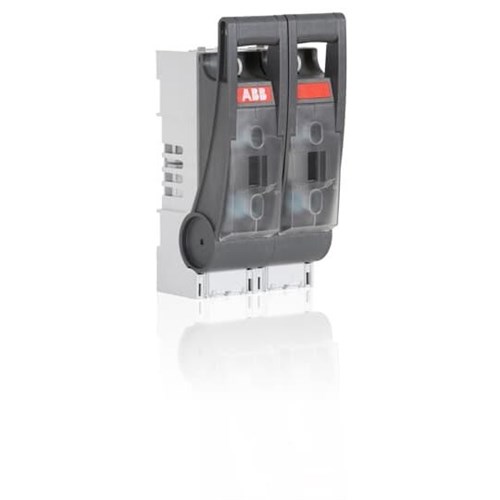

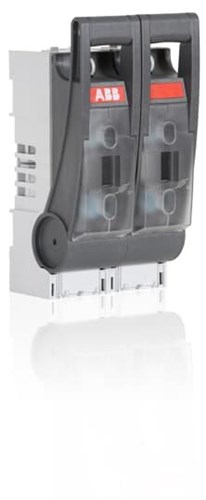

Product Type	Fuse switch disconnector
Brand	ABB
Series	EasyLine XLP
Application	Fuse switch disconnection and protection in low-voltage distribution
Power Loss	7.5 W
Rated Current	250 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	50 kA rms
Rated Voltage	690 V AC
No. of Poles	2P
Connection/Termination	Lug terminals
Mounting	Base mount
Size Code	NH1
Depth	117 mm
Height	269 mm
Weight	1.63 kg
Width	140 mm
IP Rating	IP30
Standards and Approvals	IEC 60947-3
