Specifications

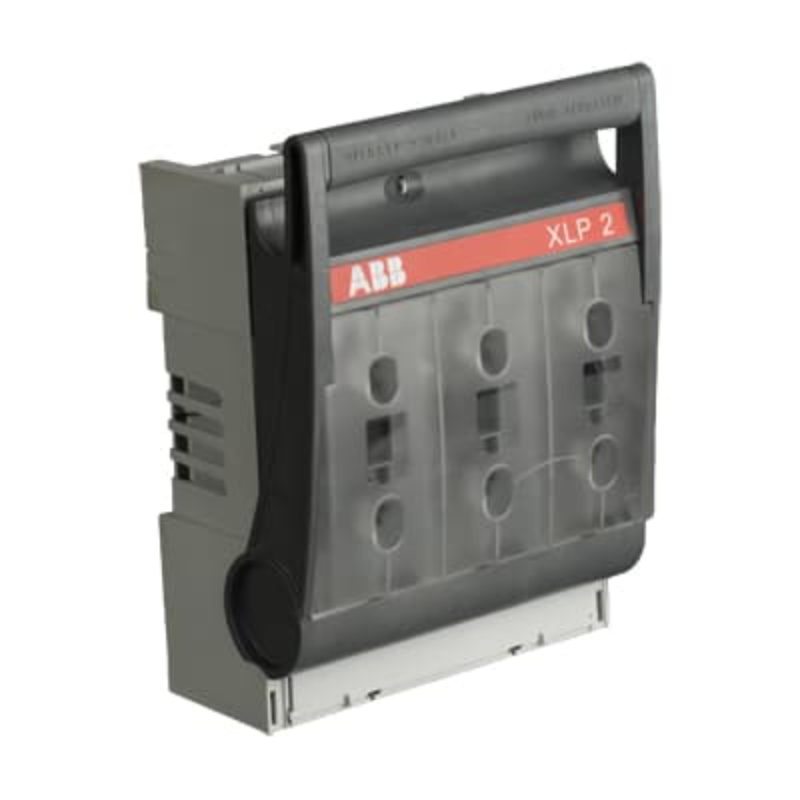

Product Type	Fuse switch disconnector
Brand	ABB
Series	EasyLine XLP
Application	Fuse switch disconnection and protection in low-voltage distribution
Power Loss	13 W
Rated Current	400 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	50 kA rms
Rated Voltage	690 V AC
No. of Poles	3P
Connection/Termination	Cable clamp / bridge clamps
Mounting	Base mount
Size Code	NH2
Depth	290 mm
Height	130 mm
Weight	3.02 kg
Width	210 mm
IP Rating	IP30
Standards and Approvals	IEC 60947-3
